ELECTRICAL INSULATING
MATERIALS IS-15652
MATERIALS IS-15652
Yogi Enterprises
- GST Number
- 27ANHPV5126E1ZV
Yogi Enterprises
Indian Standard specification for Insulating mats for electrical purposes IS 15652: 2006 –(superseding IS 5424:1969) has been published. The objective of this standard is to take care of the technological advances and developing consumer needs in the field of insulating mats for electrical purposes. While incorporating practices and experiences of the Indian industry, the standard is on the line of relevant IEC 61111-2002-06 Matting of insulating materials for electrical purposes and sampling plans have been adapted from therein and align with International practices.
| Class | Thickness | Working Voltage |
|---|---|---|
| A | 2 mm | 3.3 KV |
| B | 2.5 mm | 11 KV |
| C | 3 mm | 33 KV |
Highly recommended in all kind of electric sub-stations, transformers, AC plant, X-ray plant, lift machine, switch rooms, electrical panels, LT/HT labs, around bus bars, generator rooms as a safeguard to the life of human being due to any possible leakage

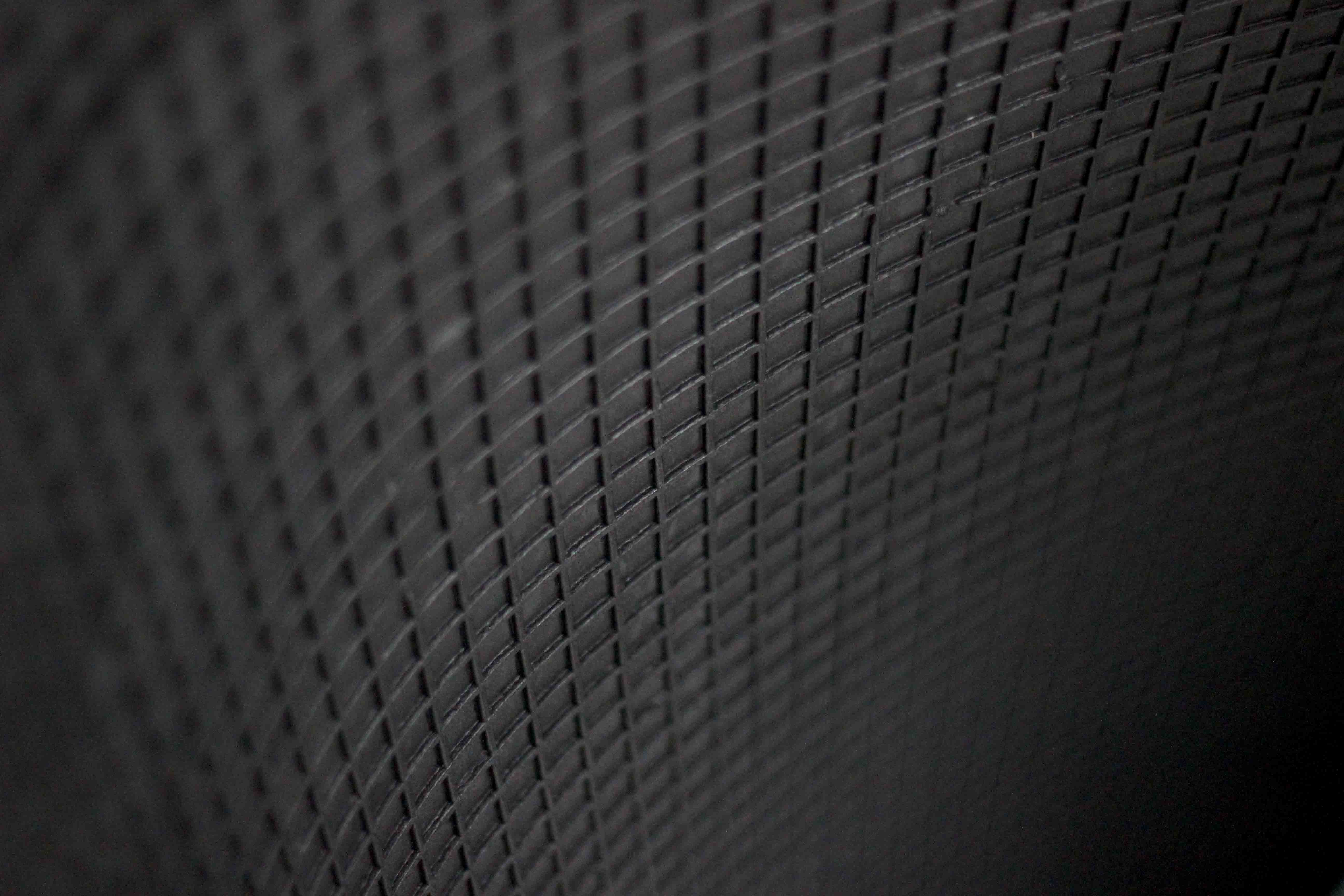

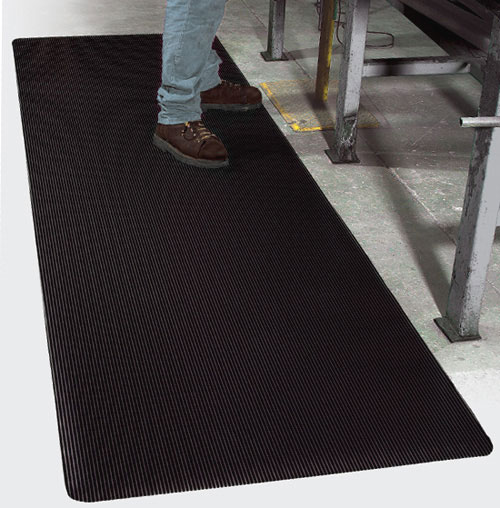

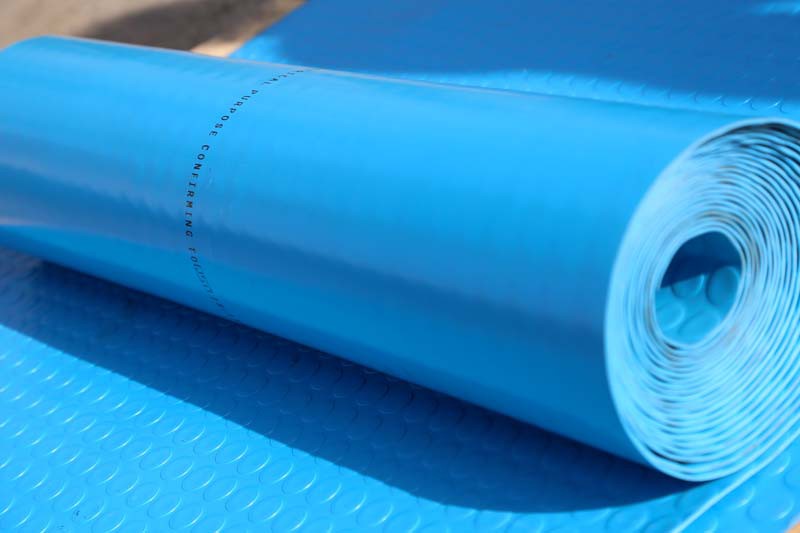

Electrical Safty Rubber mats for electrical purposes are used for the safety of electricians by provind the insulation against electricity and preventing the electric shocks. It is effective for both AC and DC installations. Synthetic Insulation Mats or Poly Elector Safe Mats are available both for H.T & LT Voltage Panels with the system voltages up to 66 kV ac and 240 V dc.These insulating mats can have safety related benefits as well as ergonomic benefits.
Insulating mat can be used in any type of industry where there is a electric shop and safety of technicians in danger. Electric shock proof mats and electrical insulation mats not only provides the protection from electric shocks but also works as cushion for the workers for ergonomical purposes. Ergonomically they provide cushion surface where workers can stand for longer period of time without complaining of ergonomically fatigue. Insulating mats for electrical panels can be very useful in
Electrical insulating rubber mats according to the IS 5424:1969 Standard. Our company offers top quality rubber mattings for electrical purposes. Electrical rubber mats are highly recommended for the safety of workmen against any electrical hazard. These products are immensely economical & suitable for general usage too. The material that’s utilized in our insulating rubber mattings are made of natural rubber that has good mechanical properties and electrical resistance.
Electrical Rubber Insulation Mats as per BIS Standard 15652-06 are divided in to three classes depending upon Voltage Ratings. The three classes varies in terms of Thickness of Mats, Voltage Grade, Proof Voltage & their break down voltage.
| Class | Thickness | Grade KV | Proof voltage | B/Down voltage |
|---|---|---|---|---|
| A | 2.0mm | 3.3 KV | 10KV/3 minutes | 30 KV |
| B | 2.5 mm | 11 KV | 22KV/3 minutes | 45 KV |
| C | 3 mm | 33 KV | 36KV/3 minutes | 65 KV |

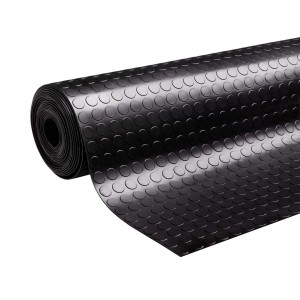

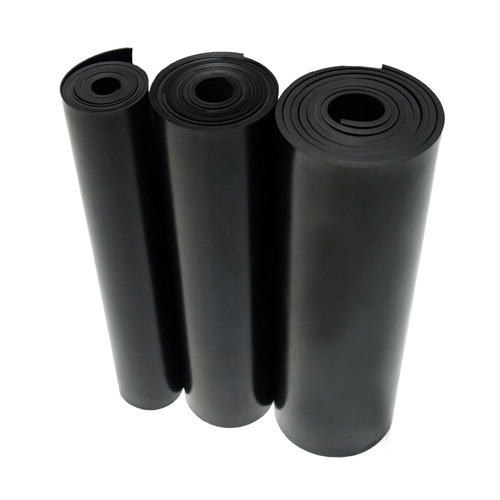

Construction:Made from Highly Electrical resistant Elastomers, free from any insertions. "Elastomer" (a generic term that includes rubbers, Latex and elastomeric compounds that may be natural synthetic or a mixture or a combination of both). High Voltage Resistant Electrical Insulation Matting is made up of 100% virgin compound.
Application: NR Sheets are used mainly used in packing, matting purposes, Skirt-Board, Sand/Shot Blasting Rubber Sheets.
Thickness: NR Rubber Sheets are Available in 1mm to 50mm thickness
Size: Length x Width -
1 Mtr x 2 Mtr,
1 Mtrs x 10 Length,
1.2 Mtrs x 10 length,
1.5 Mtrs x 10 length &
OR As Per Customer Requirements

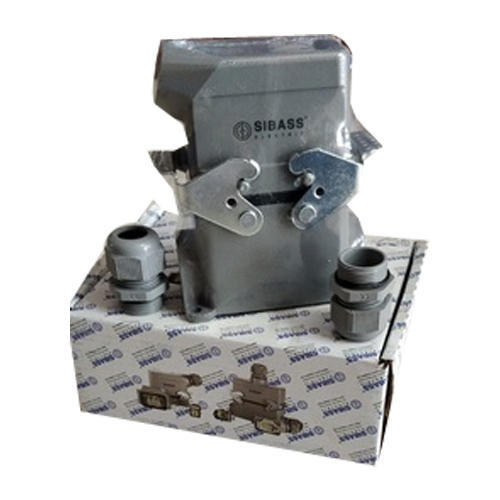

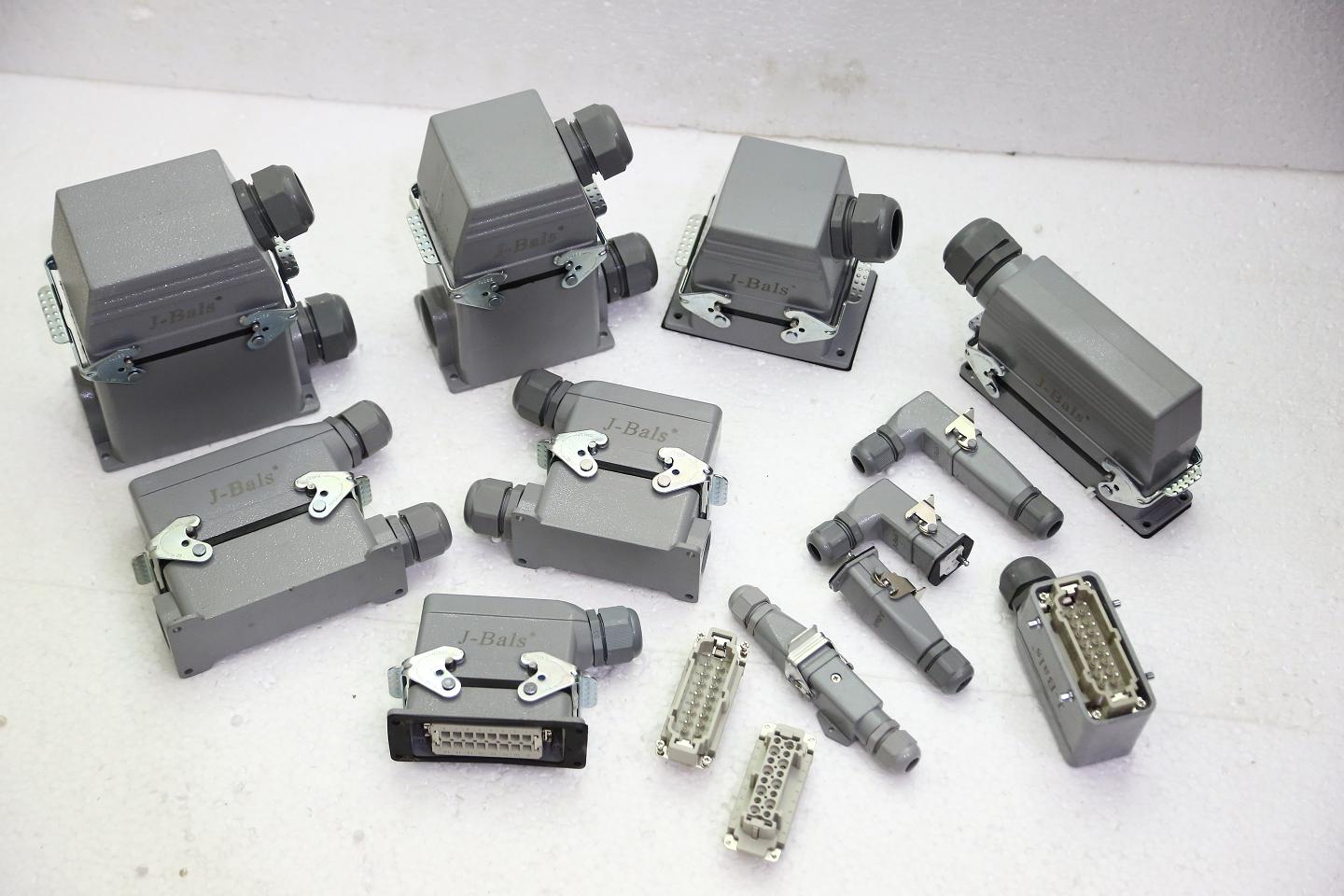

HEAVY DUTY Connectors are suited for the hardest requirements in industrial environments. They are used in all applications requiring a safe, removable electrical connection. The field of application for connectors is in protected electrical areas, for example in control cabinets to outdoor applications under the harshest environmental conditions.
Features:
Secure designs
Optimum quality
Superior performance
Specification
| No. of Pins | 4 | 6 | 10 | 16 | 24 | 32 | 48 |
|---|---|---|---|---|---|---|---|
| Amps. | 16, 32 AMP | ||||||
| Type | Side Entry , Bottom Open / Bottom Close | ||||||

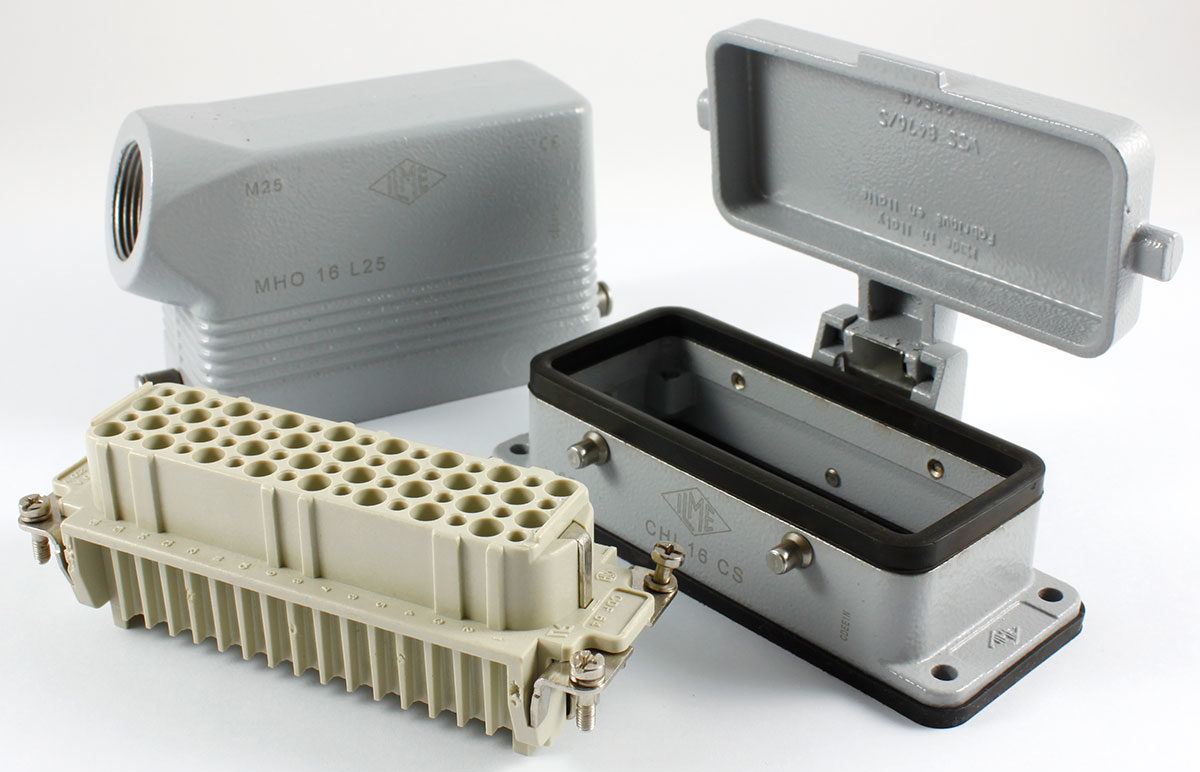

MALE FEMALE HARTING Connectors are suited for the hardest requirements in industrial environments. They are used in all applications requiring a safe, removable electrical connection. The field of application for connectors is in protected electrical areas, for example in control cabinets to outdoor applications under the harshest environmental conditions.
Features:
Working Current: 16a
Working Voltage: 600v
Material: Polycarbonate
Hoods/housings
Material Die Cast: Aliminium
Surface Powder Coated: Ral 7037
Locking Element: Stainless Steel, steel Zinc Plated
Temperature Range: -40c +125c
Degree Of Protection: Ip65
DUST PROOF HARTING Connectors are suited for the hardest requirements in industrial environments. They are used in all applications requiring a safe, removable electrical connection. The field of application for connectors is in protected electrical areas, for example in control cabinets to outdoor applications under the harshest environmental conditions.
Specification:
PINS : 16 PIN, 24 PIN
AMP : 16 AMP
TYPE : Side Entry Dust Proof, Bottom Open / Bottom Close
TOP ENTRY HARTING Connectors are suited for the hardest requirements in industrial environments. They are used in all applications requiring a safe, removable electrical connection. The field of application for connectors is in protected electrical areas, for example in control cabinets to outdoor applications under the harshest environmental conditions.
Specification
| No. of Pins | 4 | 6 | 10 | 16 | 24 | 32 | 48 |
|---|---|---|---|---|---|---|---|
| Amps. | 16 AMP | ||||||
| Type | Top Entry , Bottom Open / Bottom Close | ||||||
We are specialized firm involved in manufacturing and supplying wide types of Round Connectors.Our offered products are panel-mounting connectors used in junction boxes or as an integral part of equipment. These are manufactured as per latest norms with the use of superior quality raw materials and new-age technology in different designs and sizes. Moreover, these connectors are supplied to customers in tamper-proof packaging with full assurance of timely delivery
Features:
Superior finishing
Firm lock system
High insulation property
Specification
| MM | Pin-Round Connectors |
|---|---|
| 20MM | 2,3,4,7, 8,10,12,14 |
| 28MM | 2,3,4,7,8,10,12,14,16 |

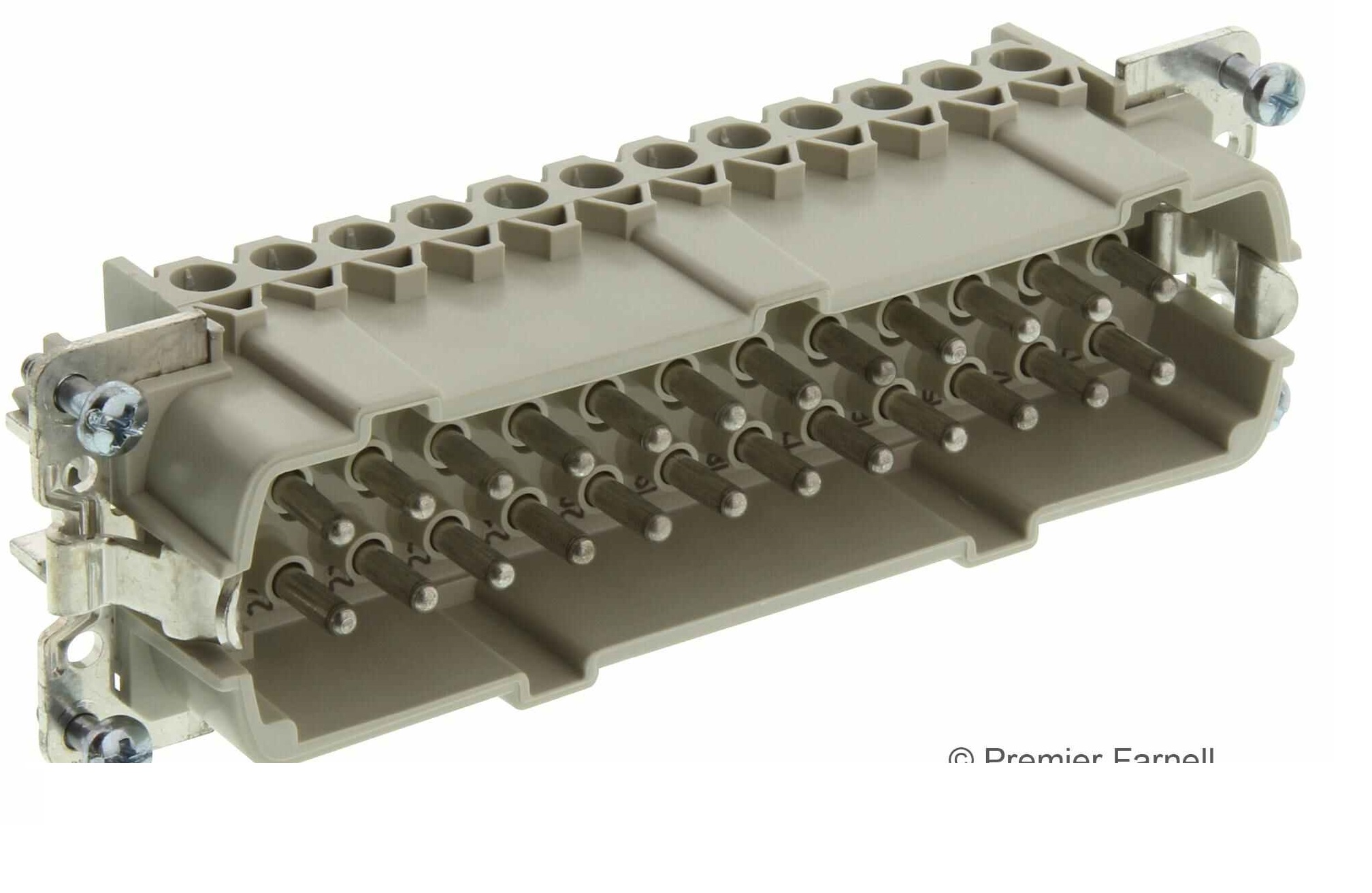

Specification
| No. of Pins | 4 | 6 | 10 | 16 | 24 | 32 | 48 |
|---|---|---|---|---|---|---|---|
| Amps. | 16 AMP | ||||||
| Type | Male Female Connector Inset | ||||||
Our competency lies in offering our clients an outstanding quality range of Tower Light at the most cost-effective prices. The only high-quality raw material is used while manufacturing the offered light, for increased conformity with industry norms of quality. The offered light is highly valued among clients for its high quality and fine finish. Apart from this, our range is offered in diverse specifications, as per the precise requirements of our clients.
Product Details:
| Lighting Type | LED |
|---|---|
| Number of Lights | 1 to 5 |
| Colour | Red, Yellow, Blue, Green |
| Input Voltage | 12-24 VDC / 110/230 VAC |
Features:
Robust construction
Durable
Require less maintenance

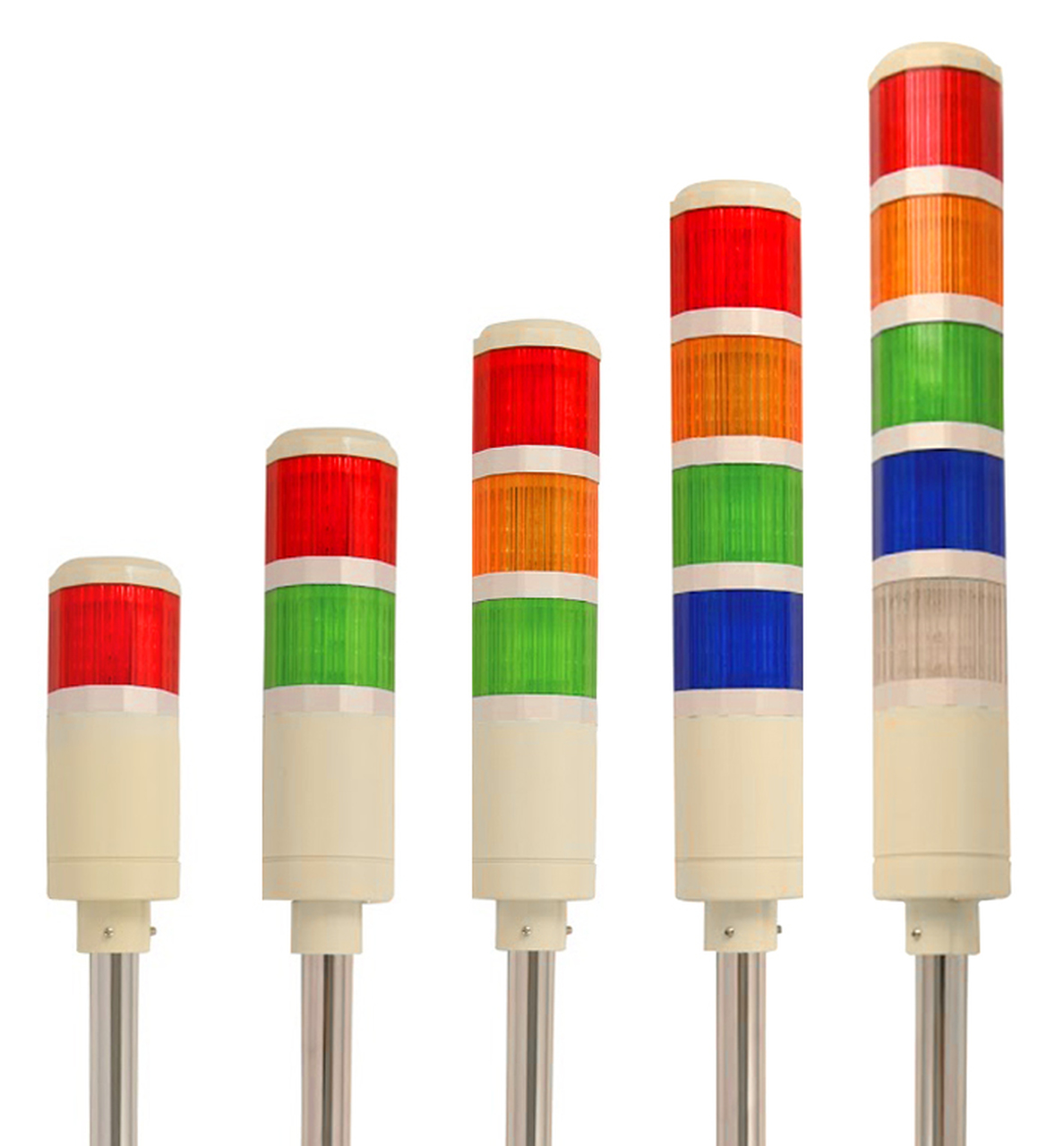

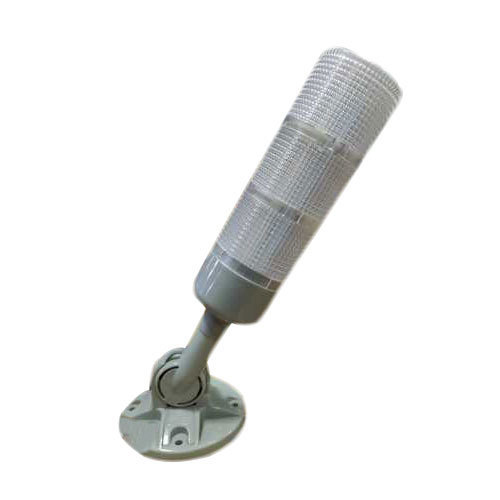

Multi Layer Tower Lamps are useful for packaging, material handling, conveyor and semiconductor equipment. OEMs and facility engineers now have a better means of checking production status and machine operation sequences with the new Tower Light. Modular in design they allow maximum user flexibility with simple installation and maintenance. Quick installation and improved LED performance minimizes the time needed by facility engineers to maintain the signal light
| Lighting Type | LED |
|---|---|
| Voltage | 12-24 VDC / 110-230VAC |
| Number of Lights | 1 TO 5 |
| IP Rating | IP65 |
| Colour | Red, Yellow, Green |
| View Angle | 90 Degree ROTATING |

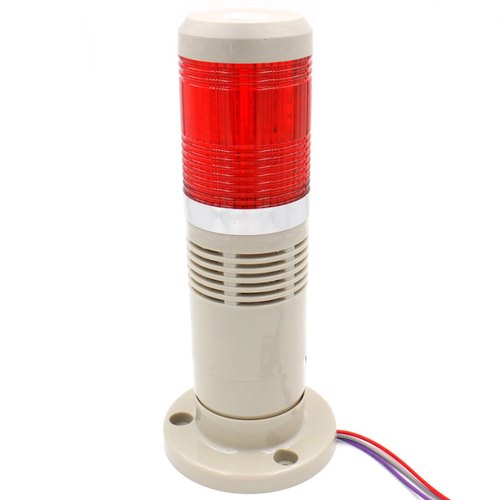

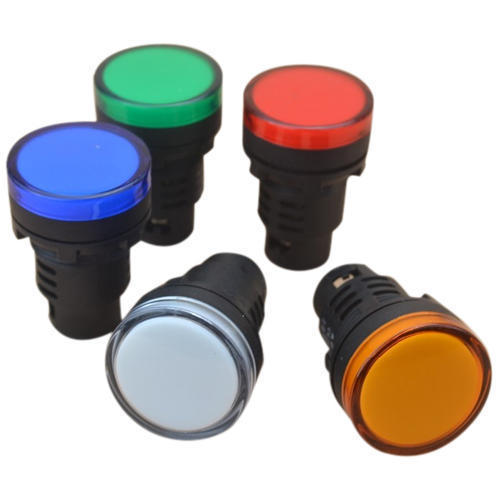

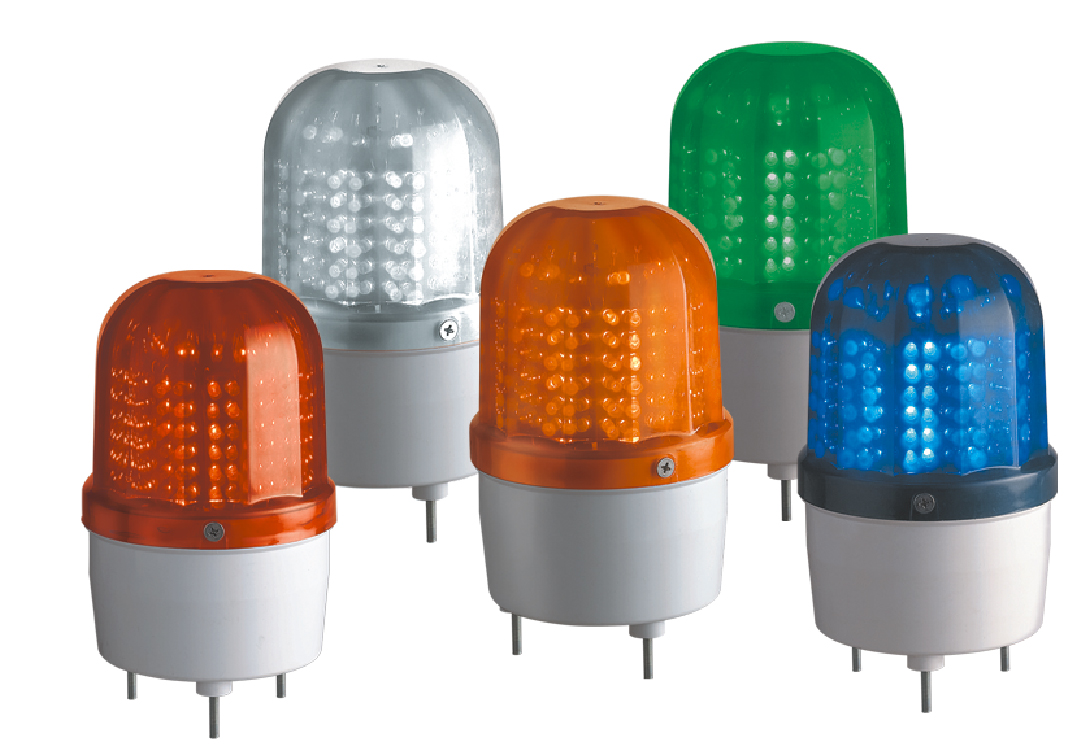

As an esteemed company, we are engaged in providing the wide spectrum of LED Tower Light to our precious clients. Manufactured using the finest quality raw material and advanced technology in adherence to universal standards, it is highly demanded by our clients. It is highly acclaimed in the industry for its best quality and consistency. Besides, clients can avail this light from us at industry-leading prices.
| Lighting Type | LED |
|---|---|
| Number of Lights | 1 |
| Colour | Red |
| Input Voltage | 12-24 VDC / 110/230 VAC |
Features:
Precision designed
Excellent
No maintenance
Product Details:
| Body Material | Plastic |
|---|---|
| Type | LED |
| Voltage | 12/24 VDC , 110/230 VAC |
| Colour | Red, Yellow, Blue, Green |

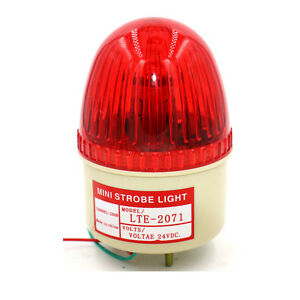

LED Strobe Light of High Brightness, Excellent Visibility from a Distance. Improving Visibility by Employing Special Scattering Lens. Semi-permanent in the lifespan of the light source and suitable for machines having.
Product Details:
| Body Material | PVC |
|---|---|
| Type | LED |
| Voltage | 12/24 VDC , 110/230 VAC |
| IP Rating | IP65 |
| Watt | 10 |

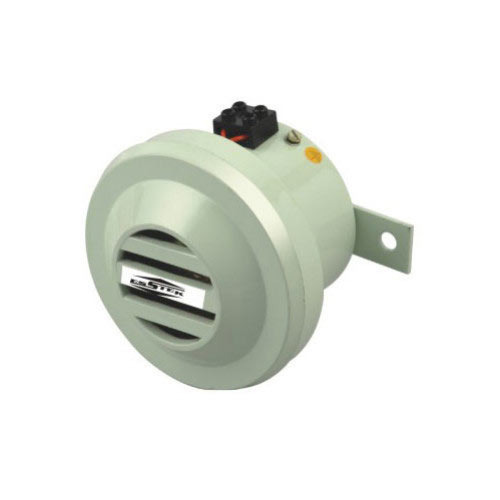

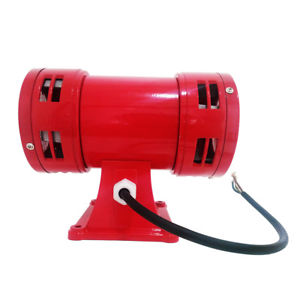

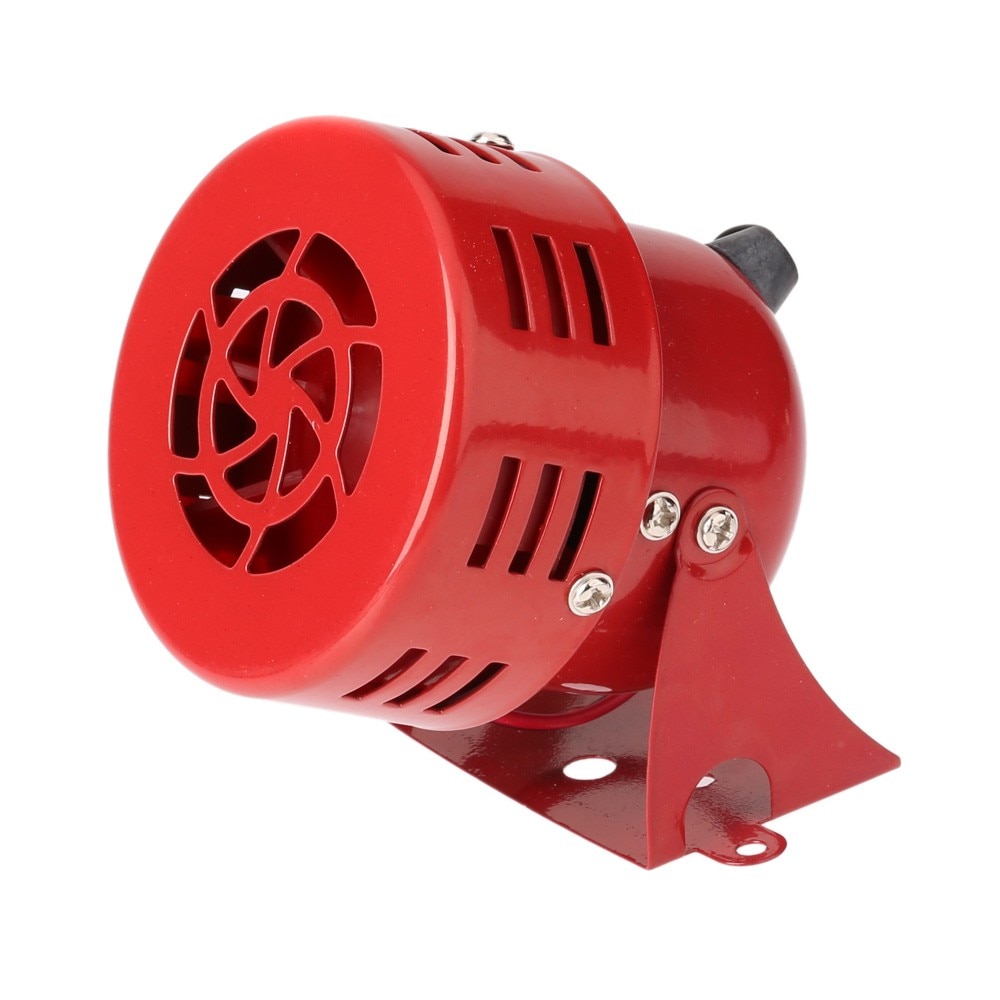

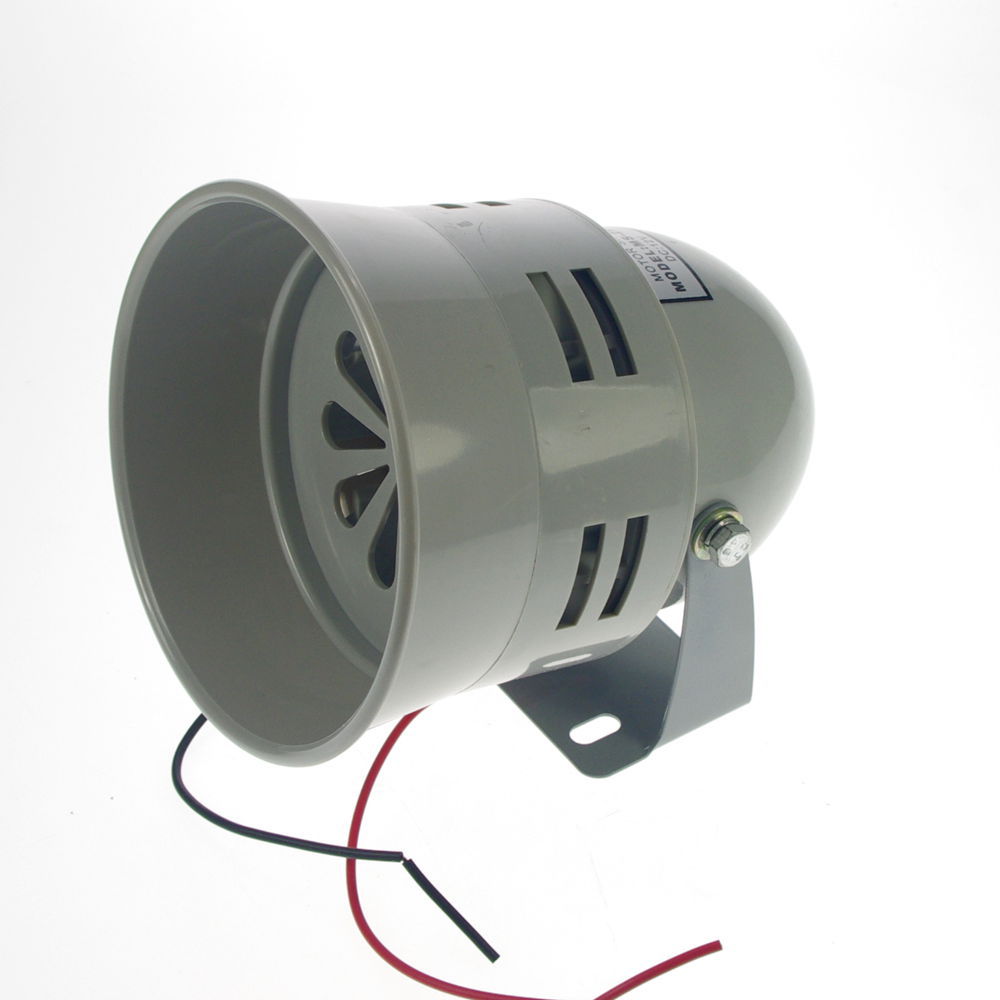

Manufacturer of Siren - Horizontal Double Mounting Siren, Vertical Single Mounting Siren, Battery Operated Sirens and Floor Mounting Siren
| Minimum Order Quantity | 1 Piece |
|---|---|
| Siren Range | 1 KM |
| Power Source | DC/Battery,AC Voltage |
Product Specification
| Minimum Order Quantity | 1 Piece |
|---|---|
| Siren Range | 500-750 MTR |
| Power Source | DC/Battery,AC Voltage |
Product Specification
| Minimum Order Quantity | 1 Piece |
|---|---|
| Siren Range | 100 - 300 MTR |
| Power Source | DC/Battery,AC Voltage |
Product Specification
| Minimum Order Quantity | 1 Piece |
|---|---|
| Siren Range | 100 MTR |
| Power Source | 12/24 VDC, 110/230VAC Voltage |
Product Specification
| Minimum Order Quantity | 1 Piece |
|---|---|
| Siren Range | 100 MTR |
| Power Source | 12/24 VDC, 110/230VAC Voltage |
Product Specification
| Minimum Order Quantity | 10 Piece |
|---|---|
| Siren Range | 30-50 MTR |
| Power Source | 12/24 VDC, 110/230VAC Voltage |

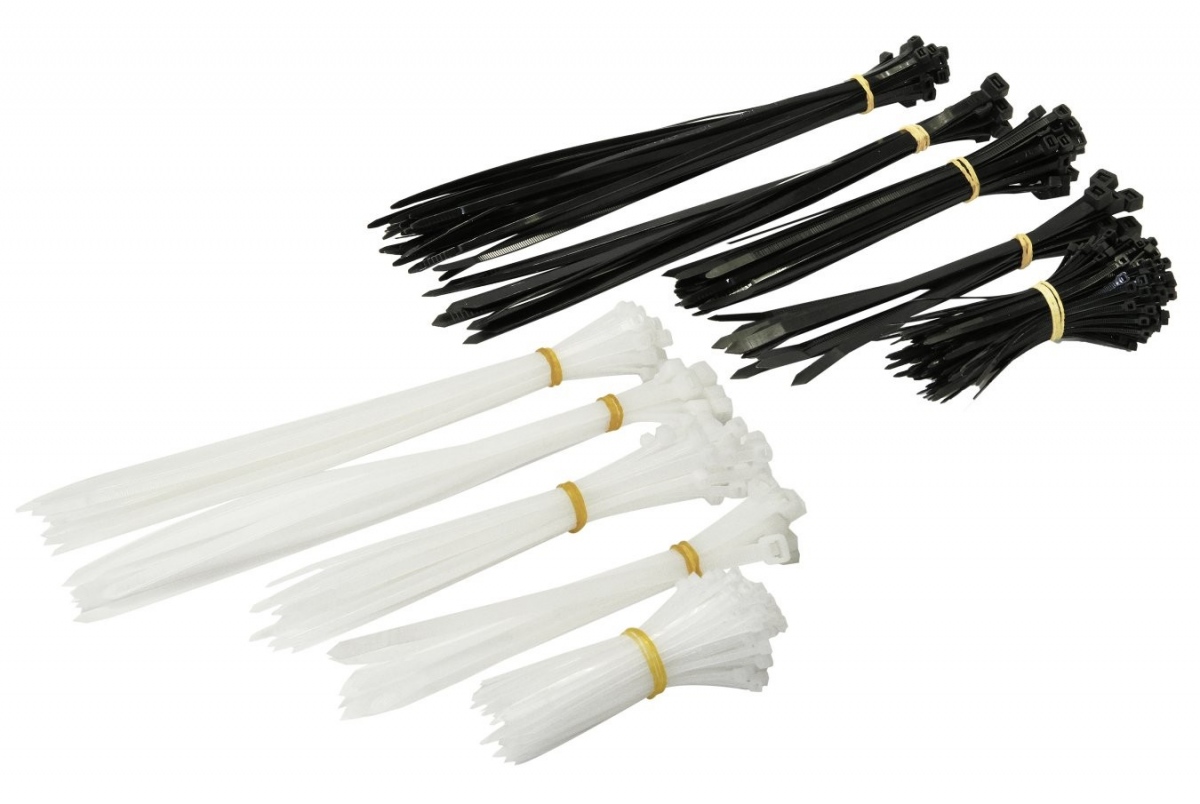

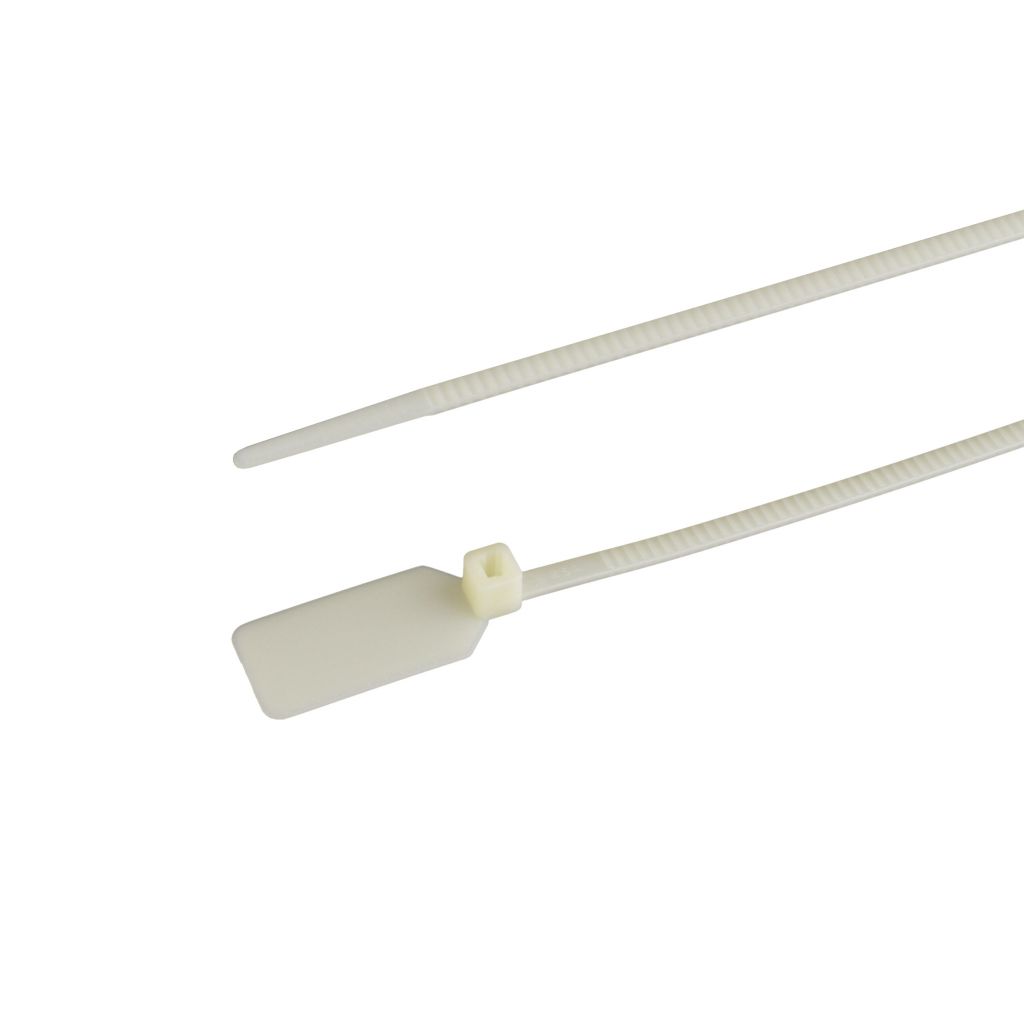

Nylon Cable Ties A Significant Product Used in Commercial and Industrial Sectors
Nylon cable ties offer industrial demands such as colored cable ties for color coding and nylon cable ties with fixing elements for attachment to plates. Nylon cable ties are used to tie the wires together in industrial areas and commercial places. There are also cable ties that are manufactured making use of stainless steel and other materials.
Standard Colour :Natural Colour. Other colours available on request, subject to a Minimum Order.
Operating Temperature :-25° C to +85° C
Size : 100 To 500 mm
Standard Packing :100 Nos.
This Velcro based Hook & Loop Reusable Magic Ties are an enterely new concept. They secure the cables firmly without damaging them., and are reusable upto 400 times. They provide flexibility in insertion of additional wiresin the bundle at the later stage due to changes in planning etc. These Ties are 100% water resistant and can even function undersubmerged conditions.
Features:
Unique design facilitating Quick y & easy application.
Releasable & reusable up to 400 times.
Non Abrasive
Corrosion free.
No tools required.
Superior Quality.
Standard Colour : White other colours available on request.
Packing : 100 pcs /pkt

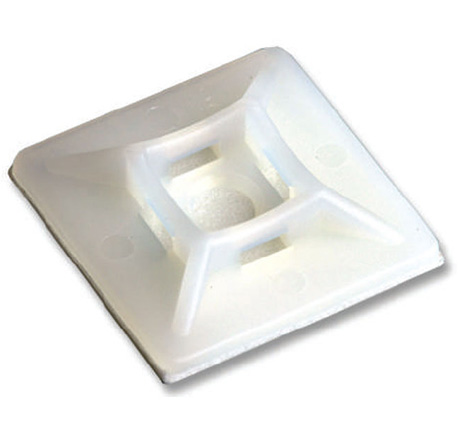

Adhesive Backed Tie Mounts are used to anchor wire bundles or cables to walls, ceilings, plates, panels, or any other structure. No tool is required for installation. Simply place the Adhesive-Backed Mount on the desired surface, and secure the cables with Cable-Ties.
The Continuous-Straight Pull Load is 1Kg/square inch (25.4mm) of adhesive. Operating Temperature for Adhesive: Upto 52°
Size : 19x19 / 25x25 mm
Standard Packing :100 Nos.

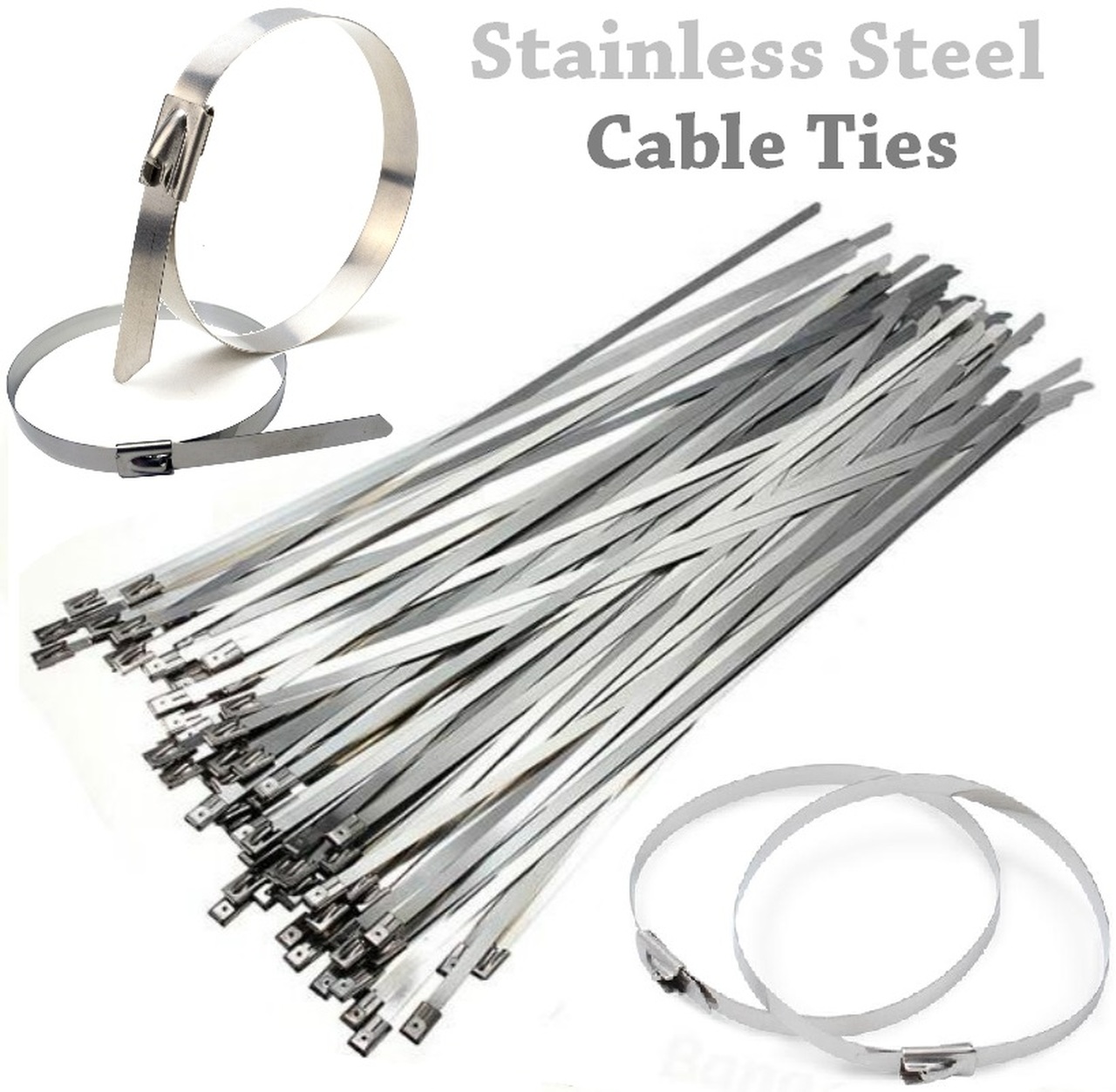

Stainless Steel Ties have superior and high tensile strength and is made from corrosion resistant stainless steel grade 304. The unique and self locking mechanism gives easy and hassle free security in locking.
The stainless steel ties are a quick, efficient and ultimate way of securing cables in extreme conditions and hazardous areas. Used both in indoor and outdoor areas such as the Petrochemical, Ship building, Power Stations, Food Processing Industries, Mining, Offshore and other aggressive environments
Ensuring a long service life, these ties are Water, Chemical, UV radiation resistant and Non Flammable.
Size : 100 To 500 mm
Standard Packing :Nos

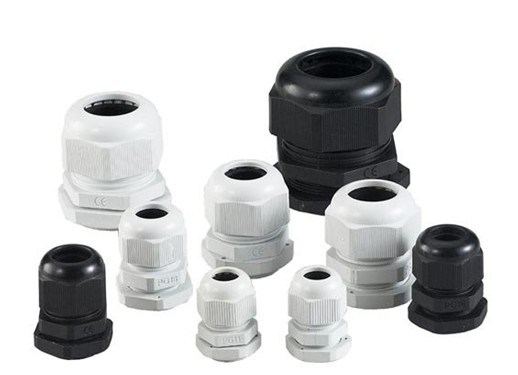

Material: Adopting nylon PA66 certificated by UL for the plastic parts; NBR, EPDM for rubber parts.
Thread:PG, Metric thread
Working temperature: -40 to 100 in static state, instantaneous heat-resisting up to 120 ; -20 to 80 in dynamic state, instantaneous heat-resisting up to 100
Characteristics: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Colours: Black, Light Gray(RAL7035), other colours available upon request.
IP68 Gland Material : PVC
Size : PG 7 To PG 63
Standard Packing :100 Nos.
Thread: PG, Metric thread
Temperature: -40 to 100 , instantaneous heat-resisting up to 120
Characteri stics: The claws and seals of excellent design, can hold cable firmly and
have a wider cable range. Resistant to salt water, weak acid, alcohol, oil,grease and common solvency.

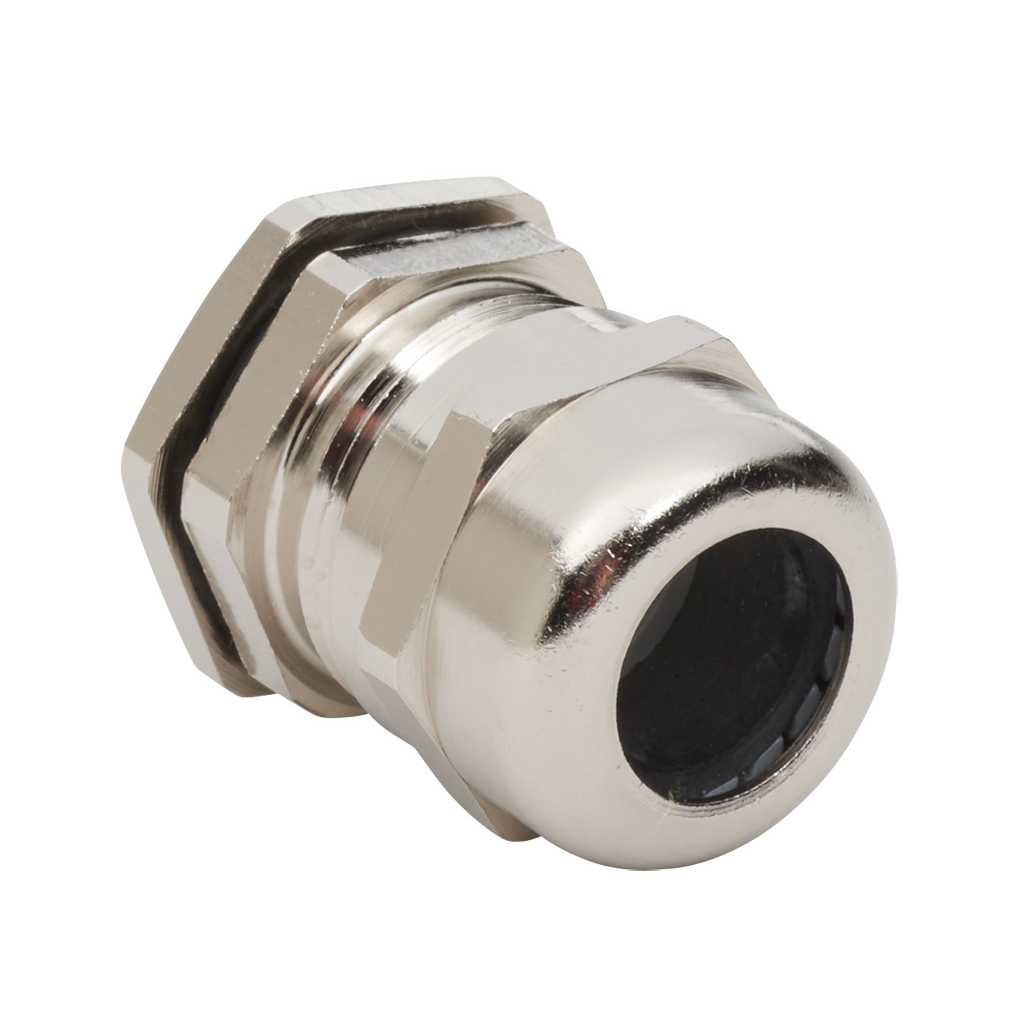

Gland Material : Brass, Stainless Steel 316L
Size : PG 7 To PG 63
Standard Packing :100 Nos.

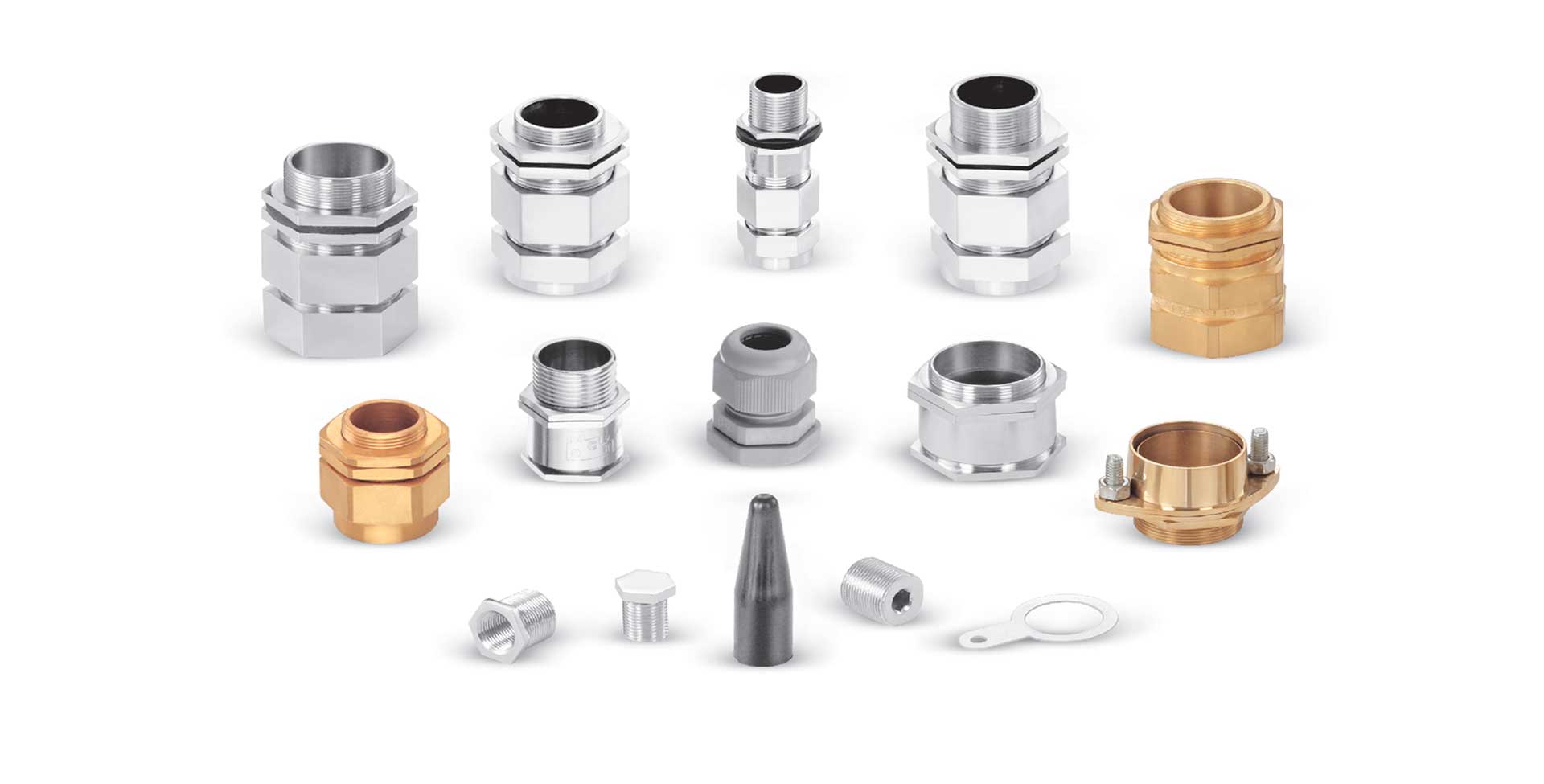

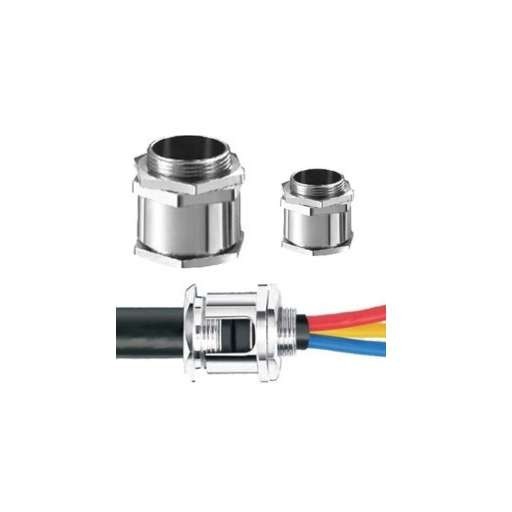

These indoor and outdoor cable glands are for use with all types of armoured & un-armoured cables, providing environmental seal for outer sheath of cables. The Cable Glands also provides mechanical cable retention and electrical continuity via armour wire termination.
Gland Material : Brass
Size : 10 MM To 100 MM
Standard Packing :50 NOS
These indoor and outdoor cable glands are especially designed for un-armoured & flexible cables, providing 2 nos. of environmental seal for outer sheath of cables having universal clamping range, allows the cable to be easily
Gland Material : Brass
Operating Temperature: -30`C to + 100`C
Size : 10 MM To 100 MM
Standard Packing :20 NOS

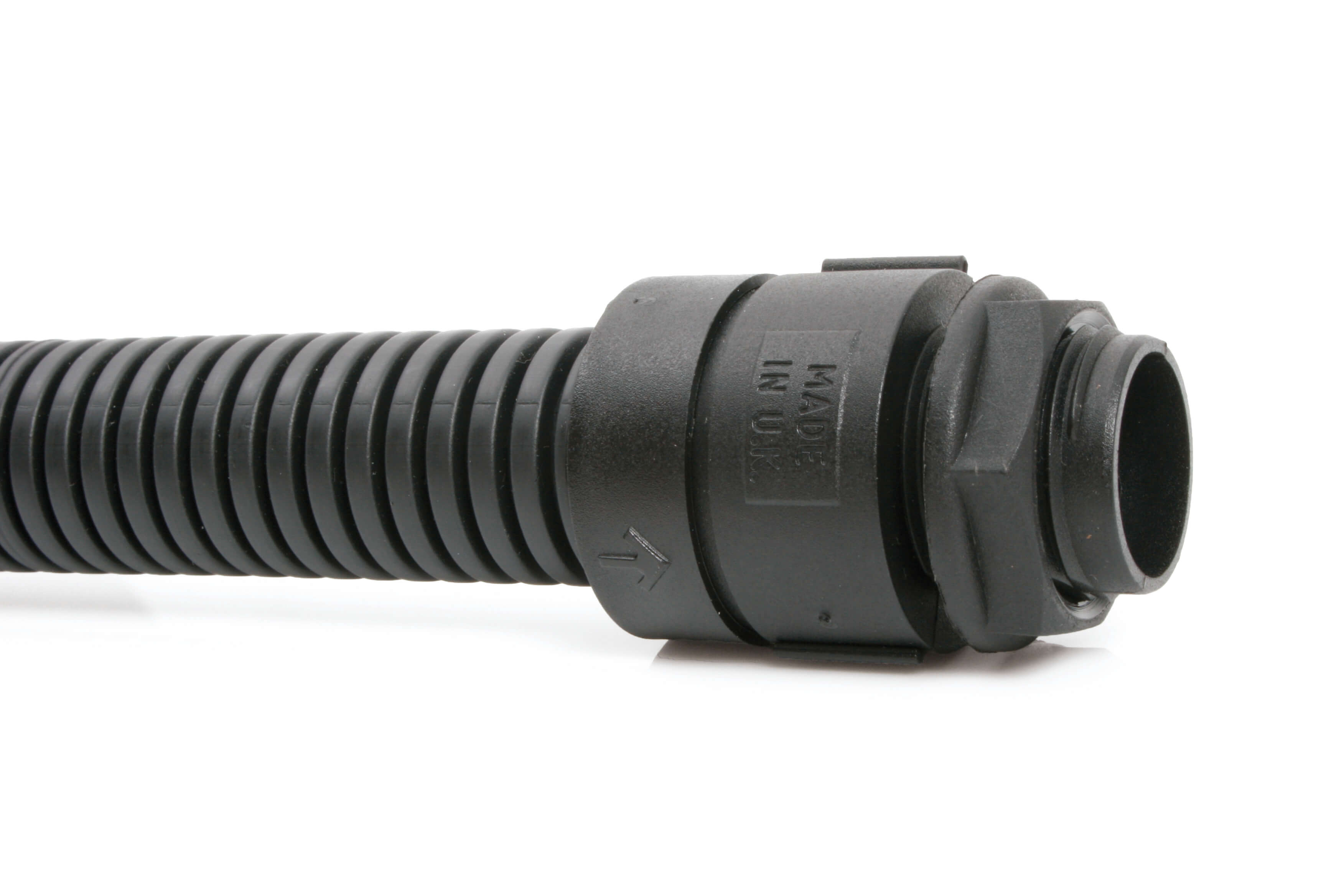

We offer multiple designs & models of CONDUIT CONNECTORS for different types of flexible conduits like: steel braided & un-braided, steel conduit with PVC / Nylon coating, liquid tight coated conduits & also for flexible PVC & Nylon conduits. We are having 6 different models of these glands including Polyamide made connector with metallic threads. Moreover, we also supply all types of flexible conduits mentioned above
Gland Material : POLYAMIDE CONDUIT GLANDS
Size : PG7 To PG48
Standard Packing :50 NOS

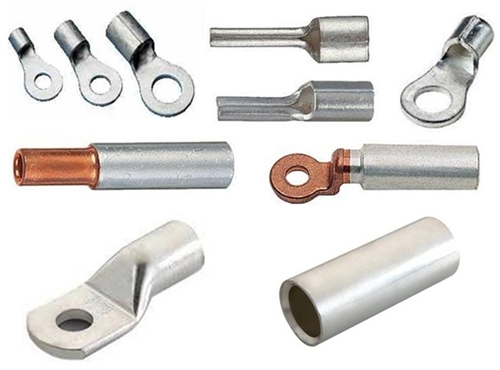

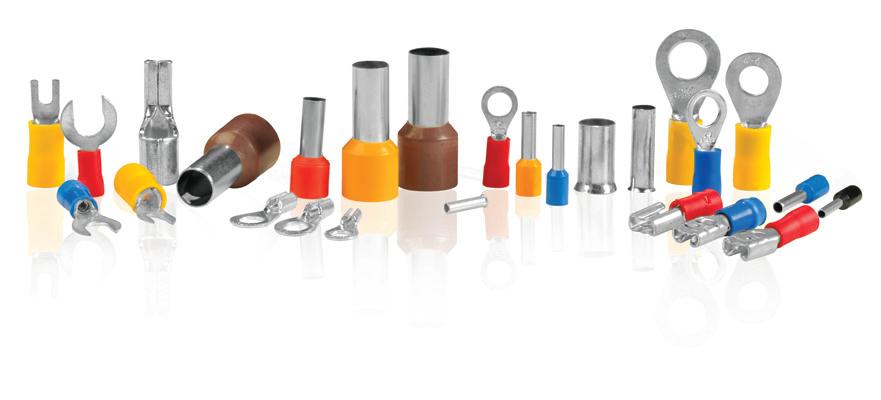

As a customer-focused organization of the industry, we are offering a large array of Cable Lugs and Terminal to our valuable customers. These products are quality tested on various quality parameters by a team of quality inspectors. Together with this, we are providing these lungs and terminals at budget-friendly price within the assured period of time
Material : Aluminium, Copper
Type : Ring, Pin, Fork, Insulated
Size : 0.25 To 400 sqmm
Standard Packing :100 NOS
As a customer-focused organization of the industry, we are offering a large array of Cable Lugs and EHI Terminalto our valuable customers. These products are quality tested on various quality parameters by a team of quality inspectors. Together with this, we are providing these lungs and terminals at budget-friendly price within the assured period of
Material : PVC, Copper
Type : Insulated
Size : 0.25 To 35 sqmm
Standard Packing :100 NOS

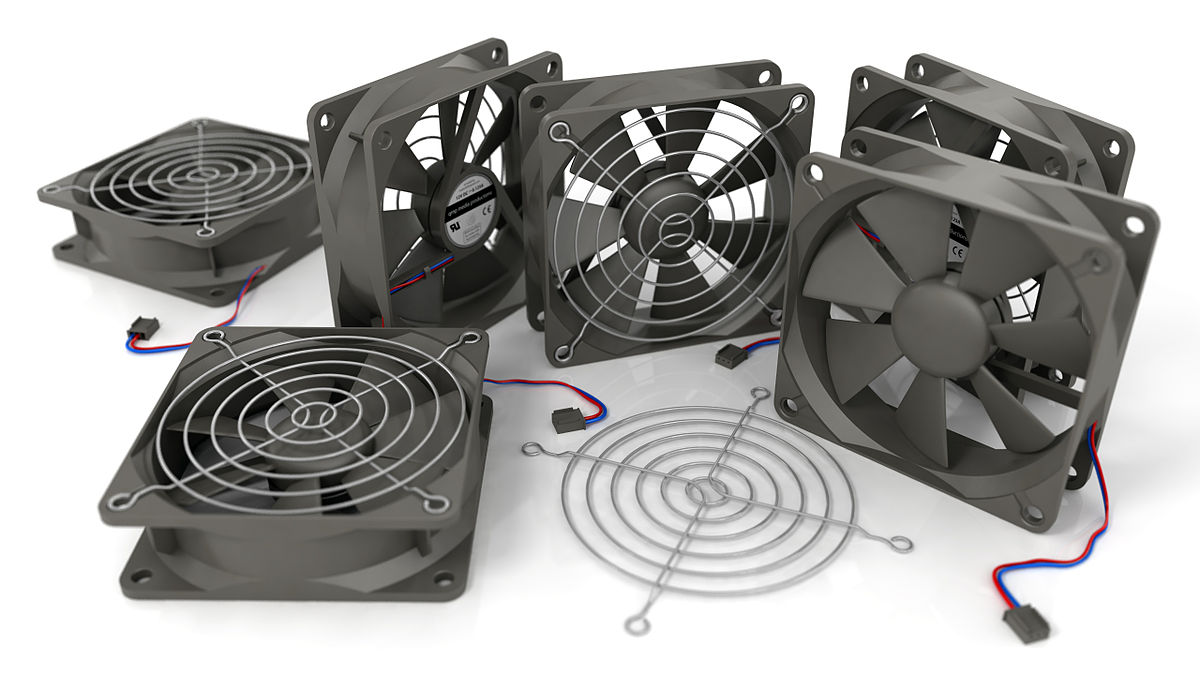

We are one of the renowned suppliers of a huge gamut of Panel Cooling Fan. These fans are extensively used in diverse industries for air cooling purposes. Our manufacturers design these fans keeping in mind the prevalent standards and trends and norms of the industry. Due to their unique design, they optimally match to the cooling requirement of all type of control panel system, super slim line, speedy mounting and high performance, optimized grill design with regard to noise generation and air volume. The product carries sleek & unique design which also enhances the aesthetics of the electrical panels
Material : METAL
Type : SQUARE
Size : 4” , 6” , 8” INCH
Standard Packing :40 NOS

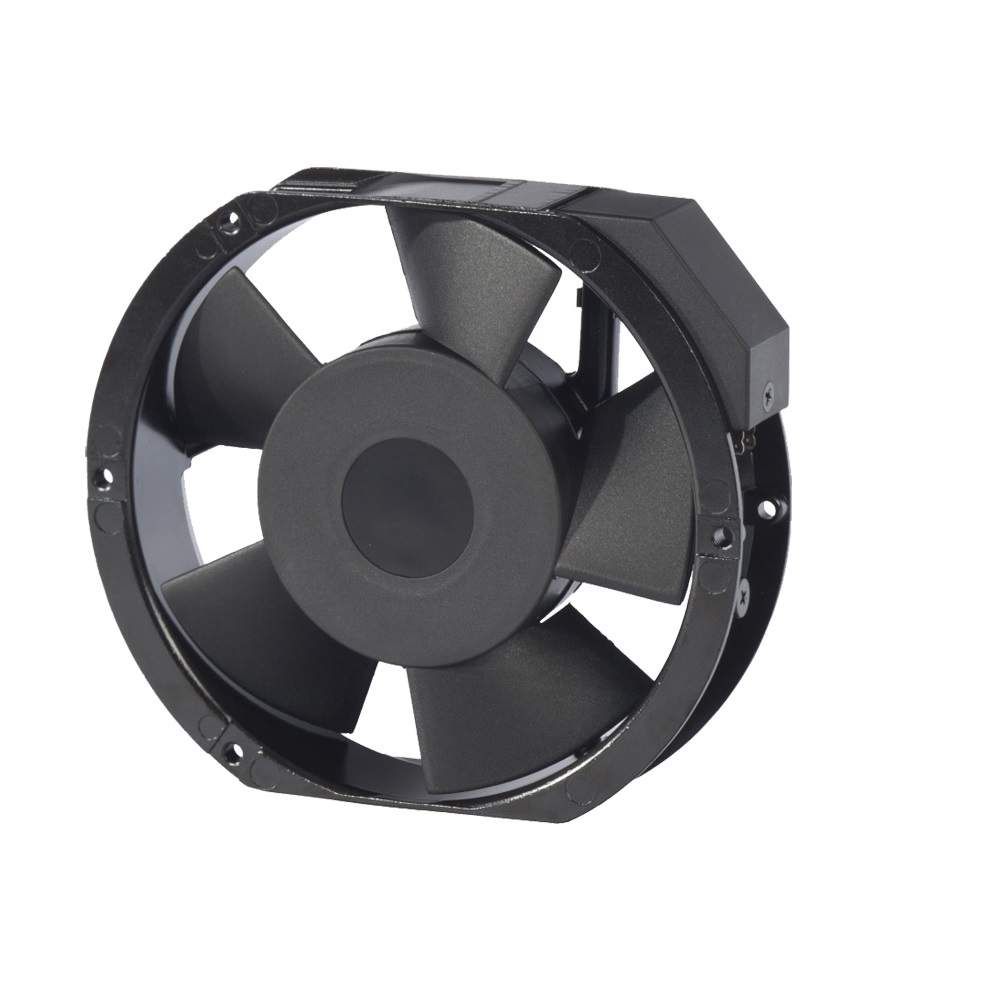

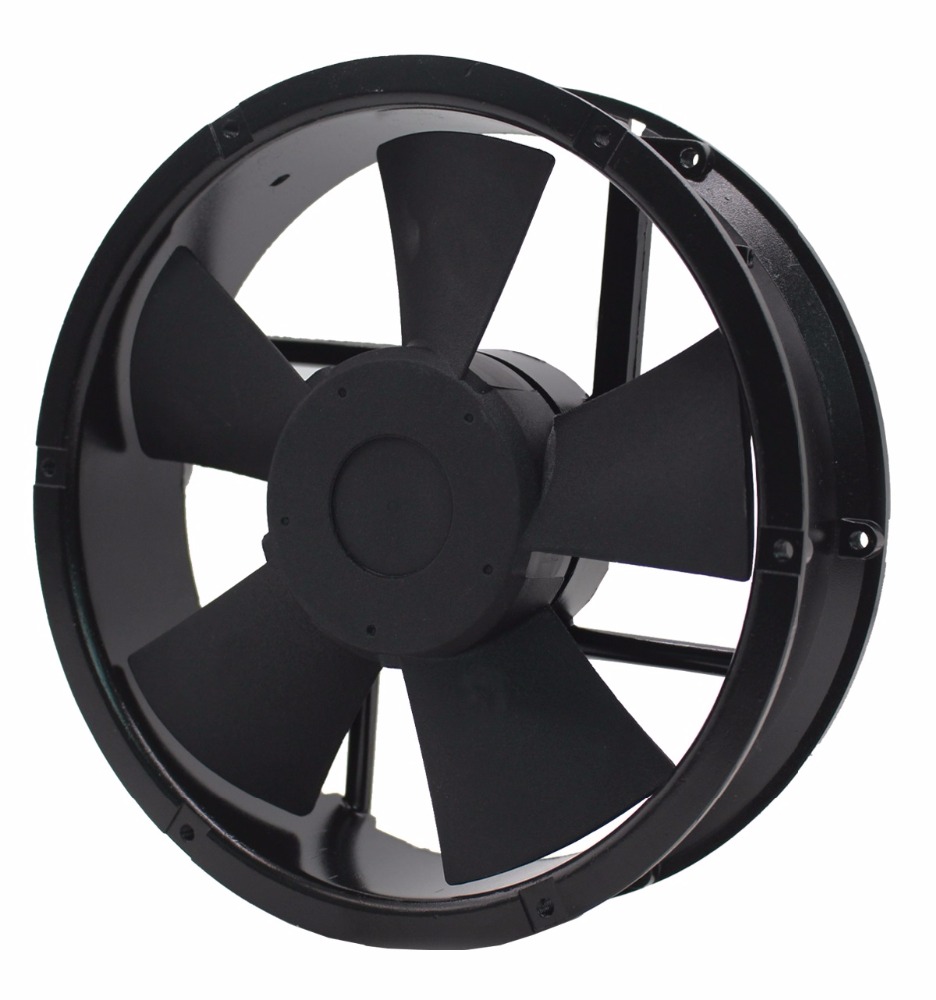

We are one of the renowned suppliers of a huge gamut of Panel Cooling Fan. These fans are extensively used in diverse industries for air cooling purposes. Our manufacturers design these fans keeping in mind the prevalent standards and trends and norms of the industry. Due to their unique design, they optimally match to the cooling requirement of all type of control panel system, super slim line, speedy mounting and high performance, optimized grill design with regard to noise generation and air volume. The product carries sleek & unique design which also enhances the aesthetics of the electrical panels
Material : METAL
Type : ROUND
Size : 6” , 8” INCH
Standard Packing :20 NOS
We are one of the renowned suppliers of a huge gamut of Panel Cooling Fan. These fans are extensively used in diverse industries for air cooling purposes. Our manufacturers design these fans keeping in mind the prevalent standards and trends and norms of the industry. Due to their unique design, they optimally match to the cooling requirement of all type of control panel system, super slim line, speedy mounting and high performance, optimized grill design with regard to noise generation and air volume. The product carries sleek & unique design which also enhances the aesthetics of the electrical panels
Material : METAL
Type : OVAL
Size : 6” , 8” INCH
Standard Packing :20 NOS

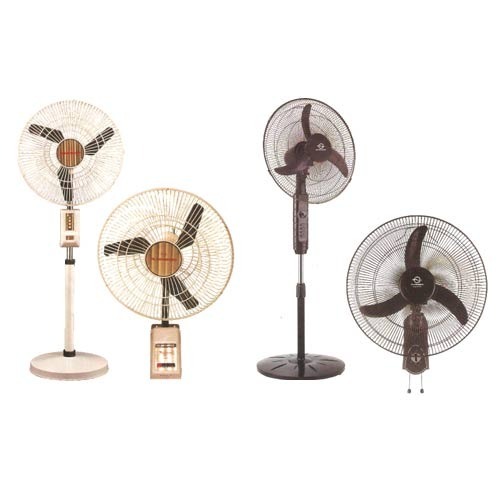

Almonard Air Circulator Heavy Duty Pedestal Fan comes with an adjustable height and has a speed of 1440 rpm. High stability is ensured by the strong streamlined pedestal. The fan's blade is produced from high-quality alloy. It is equipped with a double ball bearing which offers 90-degree oscillation. Equipped with a sturdy motor it ensures the circulation of cool air within rooms. It has a sweep of 750 mm and is of green color. The device has a voltage of 230V and a power of 250 W. The heavy-duty high-speed motor of the fan ensures a long lifespan.
Material : PVC, METAL
Type : Wall Mounting, Celling, Tabel, Pedestal
Size : 12” , 18” , 24” , 30” INCH
Volt : 230 VAC

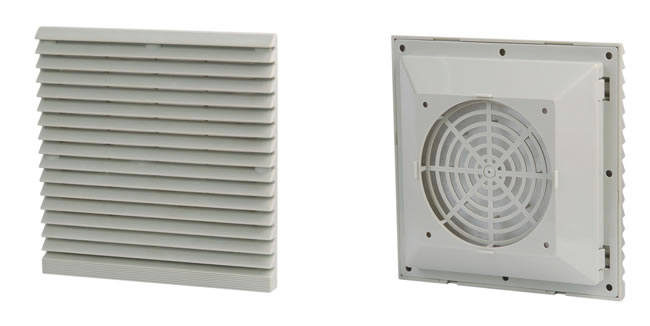

FILTER GRILL KITS are used under normal conditions to provide cooling free from dust, moisture and any atmospheric impurities up to 20 microns size particles.
FILTER GRILL KIT is distinctive, aesthetic, functional and safe. Due to their unique design, they optimally match to the cooling requirement of all type of control panel system, super slim line, speedy mounting and high performance, optimized grill design with regard to noise generation and air volume.
The product carries sleek & unique design which also enhances the aesthetics of the electrical panels.
Material : PVC
Type : SQUARE
Size : 4” , 6” , 8” INCH
Standard Packing : 100 NOS

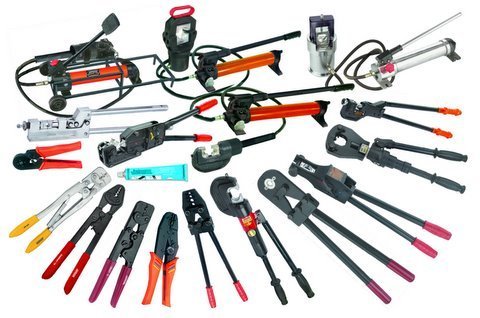

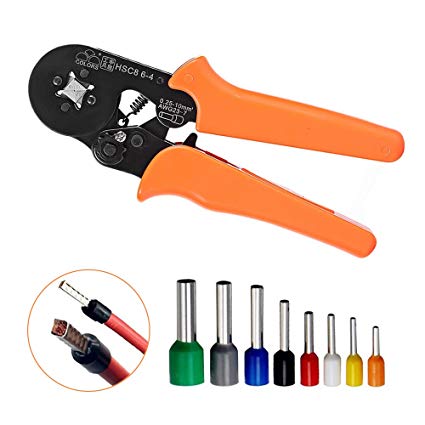

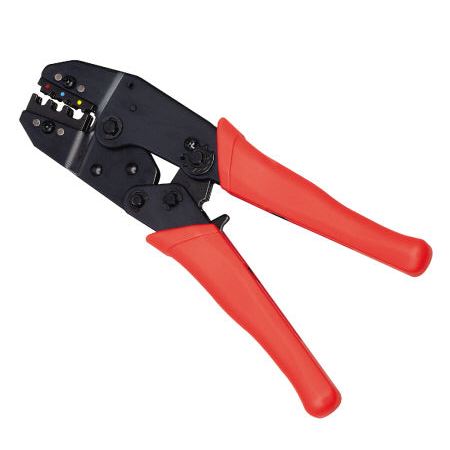

We are trading and supplying of Crimping Tools.Our provided crimping tools is developed by our skilled workforce using high grade material and advanced technology. Also, the offered crimping tools are highly appreciated by our clients for its easy installation and durability. Additionally, our crimping tools are provided from us at reasonable rates.
Features :
High tensile strength
Low maintenance
Precisely engineered
Size : 0.25 To 6 Sqmm
Type : EHI Lugs
We are trading and supplying of Crimping Tools. Our provided crimping tools is developed by our skilled workforce using high grade material and advanced technology. Also, the offered crimping tools are highly appreciated by our clients for its easy installation and durability. Additionally, our crimping tools are provided from us at reasonable rates.
Features :
High tensile strength
Low maintenance
Precisely engineered
Size : 0.25 To 6 Sqmm / 6 To 16 Sqmm
Type : Pin , Ring , EHI Lugs

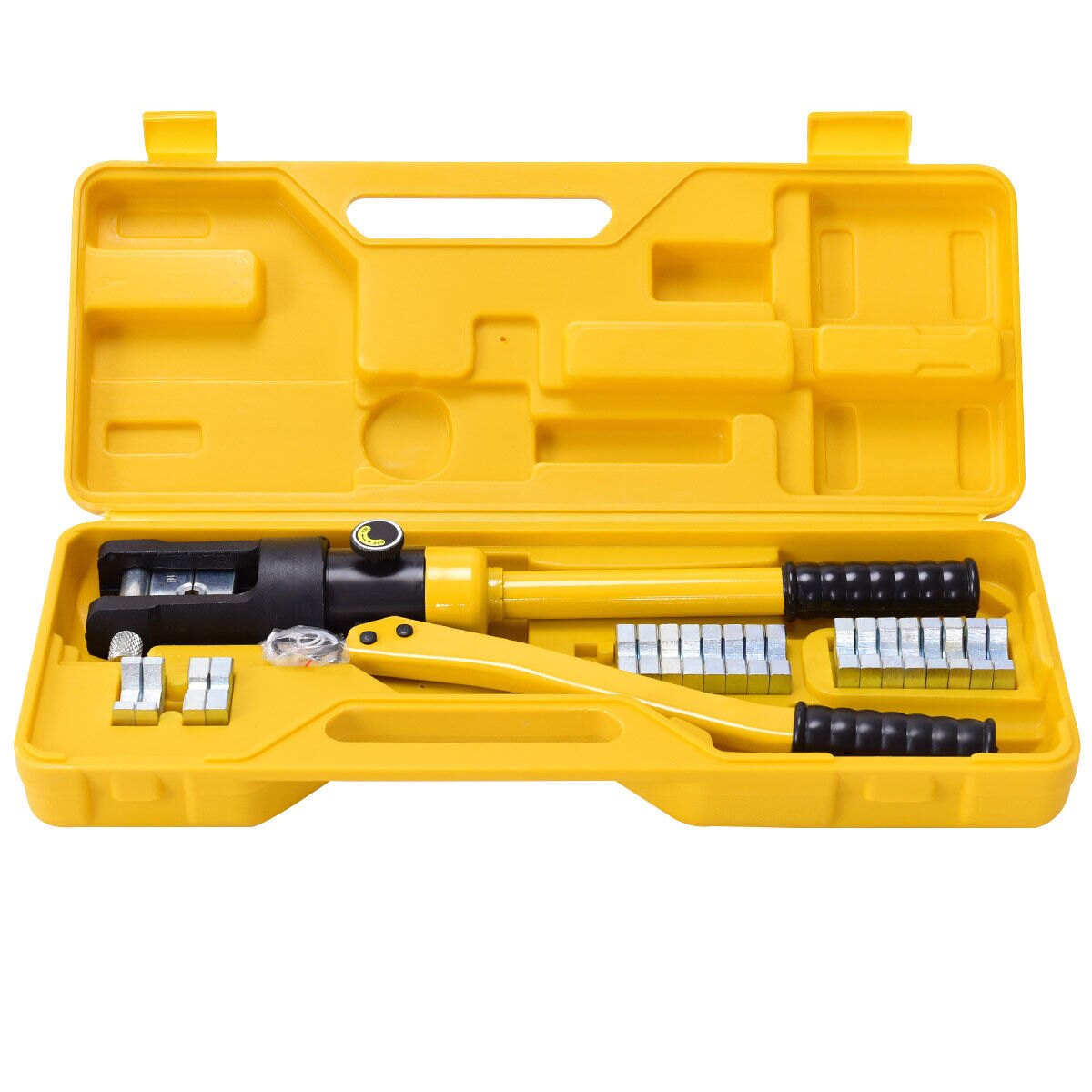

This is a hydraulic crimper tool that can help you crimp wires and butt connectors much easier. Specialized to help you get the job done right! It features powder-coated jaws, a vinyl-dipped grip for comfort and control and a convenient on/off knob for simple ram retraction.
High quality 16-300mm Hydraulic Crimper Wire cable crimping tools
Crimping force : 16 Ton Crimping stroke: 20mm
Rotation:180°
Crimping range ;
16-300 Sqmm / 25-400 Sqmm
The Lug Crimping Tool is a crimping tool that can accommodate different types of lug from electrical and cable lug. It is a crimper that is used to crimp the lug’s barrel. It can accommodate from 0.25 mm² up to 1000 mm².. Ratchet Terminal Crimping Tool. A lug crimper is designed with one crimping terminal that can crimp a range of wire and terminal sizes.

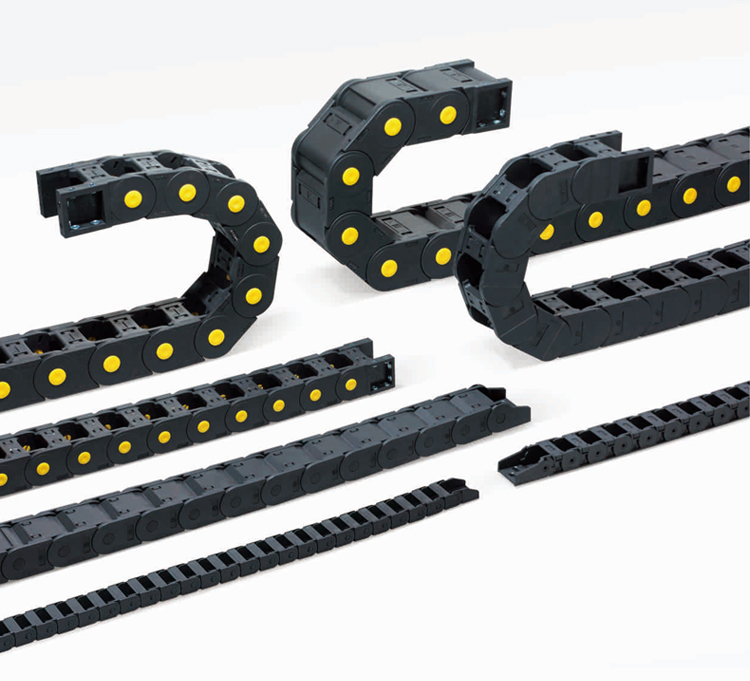

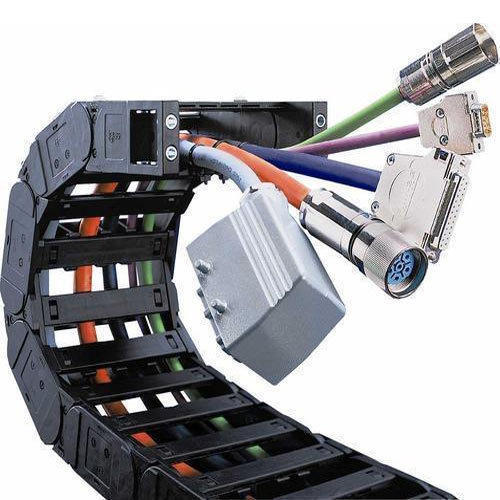

Cable Drag Chain is also known as cable carrier. It is widely used to operate pneumatic and hydraulic machines. The drag chain is connected to the automated machinery. Owing to its perfect design and dimensional accuracy, this drag chain is easy to equip into the mechanical system.
Colour : Black
Material : PVC, METAL
| Size |
|---|
| 15 X 20 MM |
| 18 X 25 MM |
| 18 X 37 MM |
| 25 X 38 MM |
| 25 X 57 MM |
| 35 X 75 MM |
| 35 X 100 MM |
| 35 X 125 MM |
| 45 X 125 MM |
| 45 X 150 MM |
| 60 X 150 MM |
| 60 X 200 MM |
Providing you the best range of close type drag chain - 25x57, close type drag chain 25x38, open type drag chain 35x75, open type drag chain 35x100, open type drag chain 35x125 and open type drag chain 45x150 with effective & timely delivery.

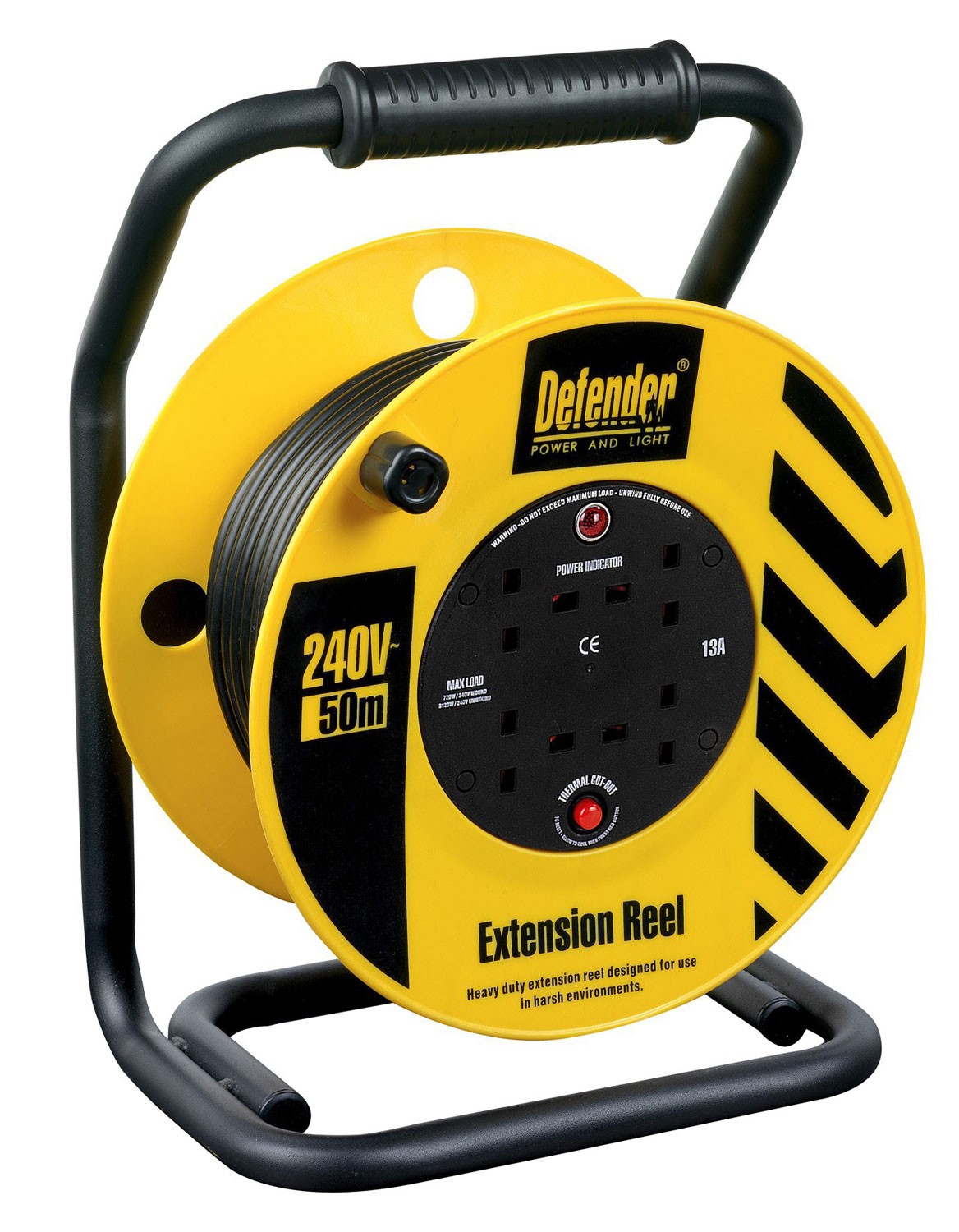

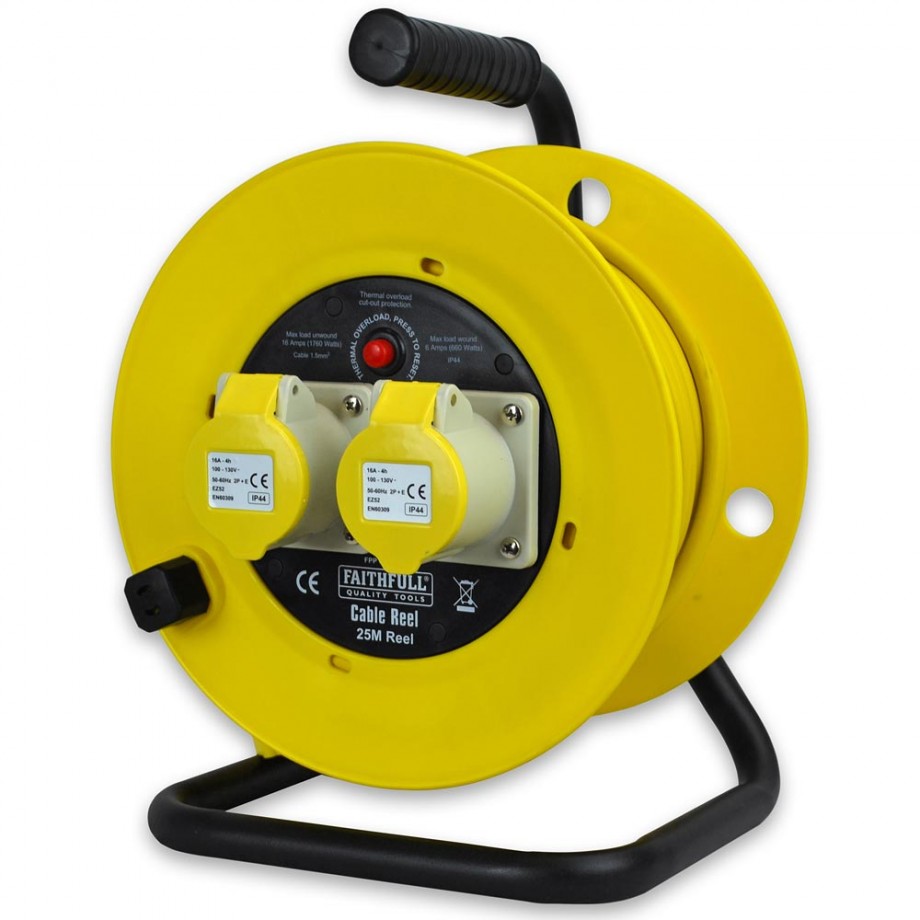

We are well-known entity instrumental in manufacturing and supplying superior quality Cable Drum. Our offered cable drums are widely known in the market for their superior finishing and high robustness aspects. With the designing and fabrication being done by utilizing superior grade raw material and advanced technology, these drums are known for superior strength and fine finishing. Moreover, we provide full assurance of in-time delivery of these products at nominal price range.
Features:
High robustness
Superior strength
Color fastness
Protection : 4way outlets With Circuit Breaker. Fuse Indicator Light
Cable Range : 2x0.75sqm, 2x1.0sqm, 2x2.5sqm, 3Cx0.7 sqm, 3Cx1.0sqm, 3Cx1.5sqm, 3Cx2.5sqm
With the aid of meticulous team of professionals, we are manufacturing and supplying best quality Cable Reeling Drum.These drums are well accepted in the market for their superior design and rust proof finishing traits. Designed and fabricated as per latest industrial norms with the use of latest technology, these drums are accurate in dimensions and highly conductive.
Features:
Precisely finished
Sturdy construction
Easy to use
Socket Protection : 16A X 2-PIN, 16A X 3-PIN, 32A X 3-PIN, 32A X 5-PIN,
Cable Range : 2x0.75sqm, 2x1.0sqm, 2x2.5sqm, 3Cx0.75sqm, 3Cx1.0sqm, 3Cx1.5sqm, 3Cx2.5sqm, 4Cx1.5sqm, 4Cx2.5sqm

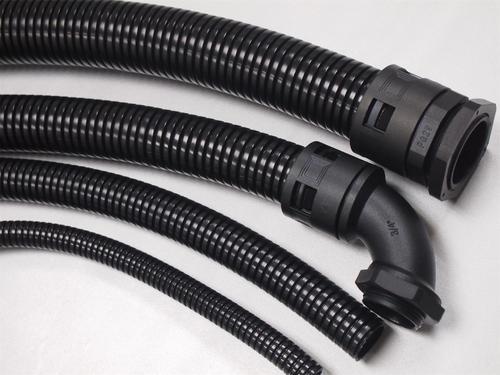

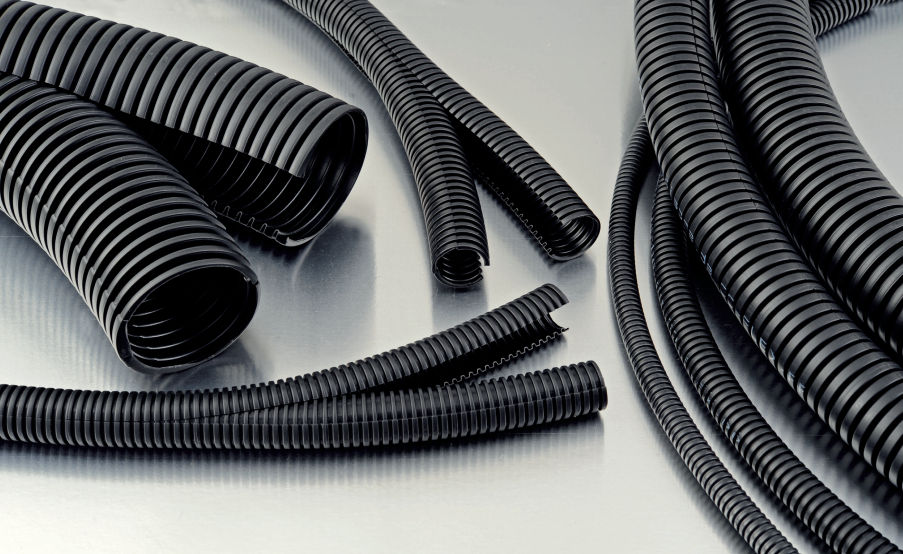

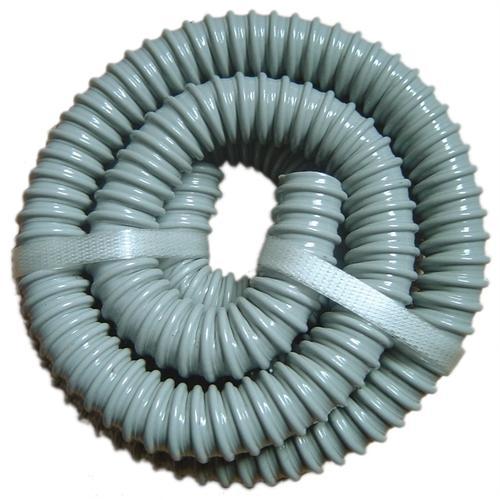

These Conduits are made of soft polyethylene (PE). They are flexible, and have a small bending radius offering good impact resistance. They are suitable for various applications such as machine tool, industrial machinery, chemical machinery etc. These Conduits offer IP67 protection in combination with Conduit Glands. UV resistant Conduits are also available on request. These Conduits are available in grey and black colours.
Material : Polymide, PVC
Type : Flexible
Size : PG7 TO PG48
Standard Packing :50 MTR
we “YOGI Enterprises” has successfully emerged as a major manufacturer of high-quality Braided Sleeves and Flexible Conduits. Offered products range consists of Braided Sleeves, Flexible Conduits, and Flexible Conduits Accessories. All offered products are manufactured using the quality tested ingredients and latest technology as per industry norms. Our range is famous in the market due to the excellent features like highly durable, fine finishing, and easy usability, lightweight and optimum strength.
Material : Polymide,
Type : Flexible
Size : PG7 TO PG48
Standard Packing :50 MTR
PVC coated flexible conduit is widely used in wire and cable protection. It’s inside is galvanized steel, and pvc coated out side. PVC coated stainless steel conduit are also workable for us. Compared flexible metal conduit, it’s waterproof. Compared with plastic flexible conduit, it is more durable and hard.
Material : PVC, Metal
Type : Flexible
Size : 12 TO 63 mm
Standard Packing :50 MTR
We, YOGI, are indulged in manufacturing, exporting and supplying the best qualitySteel Wire Reinforced PVC Flexible Pipe. This pipe is ideal to transfer fluid from one place to another in various industries such as paper, water treatment, oil and food processing. The provided pipe is manufactured under the observation of our diligent professionals by utilizing pristine quality polyvinyl chloride and sophisticated techniques. Besides, we are offering this.Steel Wire Reinforced PVC Flexible Pipe in various specifications at reasonable prices.
Material : PVC, Steel Wire
Type : Flexible
Size : 9 TO 63 mm
Standard Packing :30 MTR

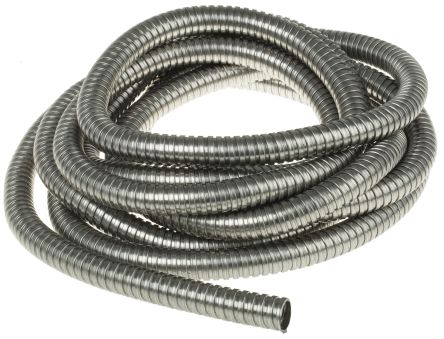

We are a company which is engaged in the manufacture and the export of a wide range of product which are inclusive of a high quality of GI Conduit Pipes which are available in a range of sizes, dimensions and they have a very sturdy make and they have been priced at very reasonable rates in the market.
These products have been made using a high quality of raw materials which have been bought from reliable vendors and they are used for a wide range of applications in the market.
Material : GI , Steel
Type : Flexible
Size : 9 TO 48 mm
Standard Packing :15 MTR

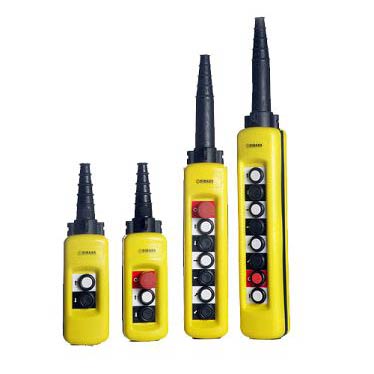

Pendant Push Buttons are ideally used for small host applications, for the control circuit in both single and double row versions, for control and direct switching power circuits & for tail lift controls.
Available in both single & double speed versions and also in vertical (single row) and horizontal (double row) types. Speed-O-Controls is manufacturing more than 25 different versions of Pendant Push Button Stations. Basic feature include:
1.Double insulated enclosures in thermoplastic self-extinguishing material (ABS)
Version available from 2 push buttons up to 14 push buttons on horizontal and vertical type
2.Adequate cabling space
3.Ease of use due to light and user-friendly function
Control button composed by shell and multi button switches. Shell of Injection molding plastic. Button head adopts apparent direction indicator, not easy to wear. Contact uses standard silver contactor, good conductivity. Emergency stop switch resets the control button after rotating or moving, manipulate button automatically reset
Features:
Enclosure Double Insulated Polypropylene Coloured Yellow
Degree Of
Protection Ip65
PVC Empty Enclosure are used to enclose push buttons. They ensure safety and are easy to handle.
Available:
One Way
Two Way
Three way
Four Way
Six Way
METAL Empty Enclosure are used to enclose push buttons. They ensure safety and are easy to handle.
Available:
One Way
Two Way
Three Way
Four Way
Six Way
Eight Way
Ten Way
Twelve Way
We are the manufacturer and supplier of Radio Remote Control Pendent Station.Our provided remote control is vastly admired in different industry for providing safe and secure communication. Offered remote control is manufactured using optimum grade raw material and latest technology under the supervision of our adroit professionals. Moreover, this remote control is quality approved in respect with set quality standards.
Features:
1.Advance program design, Quick & good performance on movements.
2.PA transmitter housing, water/shock/dust proof
3.Single-raw button transmitter, compact and lighter design, ensure safe & convenient operation.
4.Random security code up to 4.2 billions sets. Each transmitter has own unique ID code.
5.Receiver with 4-LED, quick, simple Judgement for operation status & after service.
We are reputable entity involved in manufacturing and supplying Proof Junction Box.Our offered boxes are widely accepted in the market for their robust construction and superior finishing. Owing to their fabrication being done with high-end technology, we have with us wide specifications of these boxes. Moreover, our offered boxes are supplied to customers in defect-proof packaging at market leading rates.
Features:
High durability
Superior finishing
Long service life
| Size |
|---|
| 85 X 85 X 50 |
| 100 X 100 X 70 |
| 150 X 110 X 70 |
| 150 X 150 X 70 |
| 200 X 100 X 70 |
| 200 X 155 X 80 |
| 200 X 200 X 80 |
| 255 X 200 X 80 |
| 300 X 250 X 120 |
| 400 X 350 X 120 |
We have gained huge recognizance as manufacturer and supplier Weather Proof Junction Boxes D. Our offered boxes have extensive use in making electrical connections in corrosive locations as these are waterproof and corrosion resistant. Owing to their fabrication being done as per latest industrial norms, these junction boxes are known for high durability and precise finishing aspects. With these aspects, these boxes are heavily Demanded in the market.
Features:
High sturdiness
Rust-proof finishing
Longevity
Size :
WITHOUT TERMINAL & WITH TERMINAL
| Size |
|---|
| 88 X 88 X 53 |
| 98 X 98 X 61 |
| 139 X 119 X 70 |
| 167 X 125 X 82 |
| 200 X 160 X 98 |
Mcb enclosure is special for solar system, it offers 4 & 8 poles space to
accommodate MCB, RCD or MCB/RCD combination.
Deep cover could provide ample wiring room above and below the DIN rail. It is also has top, bottom and rear cable entry.
It is water-proof with IP66 .
Size :
4 – Pole
8 – Pole
Mcb enclosure is special for solar system, it offers 4, 8 & 12 poles space to
accommodate MCB, RCD or MCB/RCD combination.
Deep cover could provide ample wiring room above and below the DIN rail. It is also has top, bottom and rear cable entry.
It is water-proof with IP65 .
Size :
4 – Pole
8 – Pole
12 – Pole
widely used for the switching of motors, capacitors (for power factor correction) and lights. As the name indicates it is used to make or break contacts as like an ordinary on-off switch. The only difference is that the contactors have an electromagnet that holds the contacts when energized whereas switches do not have it.
The basic operation of a contactors is similar to that of a relay but their contacts can carry much more current than relays. Relays cannot be directly used in circuits where the current exceeds 20 amperes. In such conditions, contactors can be used. They are available in a wide range of ratings and forms. Also, they are available up to the ampere rating of 12500A. They cannot provide short circuit protection but can only make or break contacts when excited.
Size : All Size Contactor & Relay Available
Make : Siemens, L&T, Schneider, Legrand, BCH, ABB, Any Make
MCB stands for Miniature Circuit Breaker. It automatically switches OFF electrical circuit during any abnormal condition in the electrical network such as overload & short circuitconditions. However, fuse may sense these conditions but it has to be replaced though MCB can be reset. The MCB is an electromechanical device which guards the electric wires &electrical load from overcurrent so as to avoid any kind of fire or electrical hazards. Handling MCB is quite safer and it quickly restores the supply.When it comes to house applications, MCB is the most preferred choice for overload and short circuit protection. MCB can be reset very fast & don’t have any maintenance cost. MCB works on bi-metal respective principle which provides protection against overload current&solenoidshort circuit current.
ELCB stands for Earth Leakage Circuit Breaker. They have the same function as RCCB but are voltage sensor devise. However, this is an old technology & is not in common use. RCCB being a current sensitive device have a better advantage over ELCB as under:
Size : All Size MCB, RCCB & ELCB Available
Make : Siemens, L&T, Schneider, Legrand, ABB, Any Make
The purpose of installation this MCB Distribution Box is to protect appliances from overload and short circuiting conditions. In order to provide precise control of power distribution application, this box is mounted on walls at homes, hotels, offices, hospitals, factories and various other places. To manufacture this box at advanced premises, our experienced professionals use the best grade raw materials and contemporary techniques. We provide this box to the patrons in various standard technical specifications.
Size : All Size SPN, TPN BOX Available
Make : Siemens, L&T, Schneider, Legrand, Any Make
MCCB stands for Molded Case Circuit Breaker. It is another type of electrical protection device which is used when load current exceeds the limit of a miniature circuit breaker. The MCCB provides protection against overload, short circuit faults and is also used for switching the circuits. It can be used for higher current rating and fault level even in domestic applications. The wide current ratings and high breaking capacity in MCCB find their use in industrial applications.MCCB can be used for protection of capacitor bank, generator protection and main electric feeder distribution. It offers adequate protection whenever an application requires discrimination, adjustable overload setting or earth fault protection
Size : All Size MCCB Available
Make : Siemens, L&T, Schneider, Legrand, ABB, Any Make
This type of circuit breaker includes both overload protection (thermal or electronic) and fault protection (magnetic). The trip characteristics of an MPCB are specifically designed for the protection of motors, allowing the inrush current but preventing any over-current condition that exceeds it
Size : All Size MPCB Available
Make : Siemens, L&T, Schneider, Legrand, Any Make
A fuse consists of a metal strip of small cross-section compared to the circuit conductors, mounted between a pair of electrical terminals. The fuses are connected in series to carry all the current passing through the protective circuit. An SFU is placed in a starter of a feeder circuit along with contactors and relays. The fuse element in SFU absorbs the excess current coming from supply so as to provide rated current to motor. The basic difference between an SFU and normal fuse is that, it has one switch unit and one fuse unit [4]. When we operate the breaker the contact will close through switch unit and then supply will pass through fuse unit to motor. These SFUȂs are designed to make the installation and connection of sub main or system extension easy. Circuit breaker can be used as an alternative design relative to fuses but they have significant different characterstics in low voltage switchgear and against short circuits.
Size : All Size SFU Available
Make : Siemens, L&T, Schneider, Legrand, Any Make
Motor starters help protect motors from damage caused by over and under voltages. Definite purpose contactors are suitable for many air compressor, agricultural equipment, pump, and food service equipment applications. Manual motor starters can provide on/off operation and overload protection for many small 1-phase, 3-phase, or DC motors in small machine tool, pump, fan, and conveyor applications. Motor starter accessories maintain and modify motor starter models.
Size : All Size MOTOR STARTERS Available
Make : Siemens, L&T, Any Make
This type of fuse contains a fuse wire in it, which carries the short circuit current safely for a given time period. During this period, if fault is removed, then it does not blow off otherwise it will melt and remove the circuit from electrical supply hence, the circuit remains safe.
The common material, which is used to make an HRC fuse is glass, but this is not always the case. Other chemical compounds are also used in HRC fuse manufacturing and construction based on different factors. Its external enclosure is made fully airtight in order to avoid the effect of atmosphere on the fuse materials. The major objection on HRC fuse is low and uncertain breaking capacity of semi-enclosed fuse
Size : All Size HRC FUSE Available
Make : Siemens, L&T, Schneider, Legrand, Any Make
Polycab is the market leader in Power, Control and Industrial Cables. Polycab is the fastest growing Company in cable Industry, offering the widest range of wires & cables. Polycab Single & Multi Core PVC Industrial Wires & Cables find a wide range of applications in the control panels, appliances, machine tools, machinery and are used in almost every industry.
The conductors are drawn from bright electrolytic grade copper, annealed and bunched together (multistranded) as per class 5 of IS 8130: 1984
Size : All Size CABLES Available
The cables are suitable for use on AC single phase or three phase (earthed or unearthed) systems for rated voltage up to and including 1100 volts. These cables can be used on DC systems for rated voltage up to and including 1500 volts to earth. CONDUCTOR The most acceptable metals for conductors are copper and aluminium due to their higher conductivity and ductility. As copper has got higher affinity for sulphur, it corrodes in the atmosphere where sulphur fumes are present. In these conditions tinned copper should be used. Aluminium oxide film which is always present on Aluminium conductor surface acts as barrier and it protects the Aluminium conductor from corrosion in fumes laden atmosphere. CONDUCTOR CONSTRUCTION The most economical construction for conductor is solid conductor i.e. conductor is made of one single wire
Size : All Size CABLES Available
Our complete range of Industrial Plug & Sockets are manufactured using best raw materials to perform under desired workloads and avoid any industrial-electrical accident or failure. These plug and sockets are available as per IP67, IP 44 and others in thermoplastic to ensure the safe and easy installations. These thermoplastic coated shell over the plugs and sockets are crack resistance, high medium intensity, effective electric insulation and chemical resistance. These plugs and sockets are available in various grades, designs and shapes that suit the requirements of various industries
AMP Power : 16 / 32 / 63 / 125 AMP
Pin Type : 2 / 3 / 4 / 5 Pin
Worksis proud to present Metal Clad Plug & Sockets as part of it Electrical accessories and components product range. We manufacture highly durable and great functioning Metal Clad Plug & Sockets that have found application in different industrial as well as domestic processes. Made from high quality materials, these Metal Clad Plug and Sockets are widely used to keep Sockets safe and free from dust and toxins. The unique design of these Plug and Socket cases make them highly useful in warehouses, electrical control rooms and other similar applications.
Single Phase:10A, 20A (2P + E) 250V AC
Three Phase:20A, 30A (3P + E), 63A(3P+E+N) 415V AC
With their high levels of performance adding to the functionality of the space, industrial lights are an important part of any commercial or factory setting. Fortunately, we stock a huge selection of industrial lights for your needs. From high bay fixtures ranging from LED, T5, T8, and T5HO and Compact Fluorescent Lights (CFL) to low bay fixtures ranging from LED, T8, T5, T5HO, and CFL, we have every fixture you could possibly need for this application.
We know that industrial lights are an important part of your business which is why we offer a wide selection of high bay fixtures, low bay fixtures, strip fixtures, retrofit kits, used fixtures, vapor tight and wet location fixtures, and hazardous area/explosion proof fixtures. Each of these options is specially tailored to the needs and requirements of a certain commercial area and, when chosen correctly, can help your commercial or warehouse space perform better than ever before
Size : All Type Fo LIGHTING Available
Make : Philips, Wipro, CG, Syska led, Bajaj, Any Make
They have features of complete specifications and are of several types. The features include compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment. The switches are applicable to AC control circuits of 40-60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 600V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.
Size : All Type Fo Limit Switch Available
Make : Omron, Honeywell, Sibass, kosmos, Any Make
A analog or analogue multimeter is one of the trusty workhorses of the electronics test industry. Analogue multimeters have been in use for very many years and sometimes go by the name VOA as a result of the fact that they measure volts, ohms and amps. These multimeters are extremely flexible and enable very many faults to be found in an electronic circuit.
Although analogue multimeters are now less common because digital multimeters, or DMMs are now more common, some analogue test meters are still available and may be found in some laboratories or may be available for use at home, etc
PRODUCT RANGE :
Panel and Switchboard Instruments , Testing & Measuring Instruments , Power and Harmonics Analyzer , Calibrating Equipments , Environmental Testing Instruments , Battery Testers , Solar Analyzers , Clamp-On / Split Core Current Transformers
AMP/VOLT Analog Meter
Digital AMP/VOLT Meter
Digital Multimeter
Make : Meco, Kusam Meco, AE, Fluke, Nico Power, Any Make
Our company develops GI Galvanized Perforated Cable Tray which are widely preferred for cable distribution throughout the building complexes. These are made from the finest stainless steel metal that adds to the robustness and longevity of cable trays. These are preferred for cables that require better load bearing capacity and protection against physical damages.
PRODUCT RANGE :
Wire Mesh Cable Tray
Single Rail Cable Tray
Perforated Cable Tray
Ladder Type Cable Tray
Trough Cable Tray
Our offered water level Float Switch are widely used for detecting the level of liquid in tank as these switches are designed with strict compliance of precision engineering. Excellent in durability and easy installation aspects have made these products widely used in automobile industries and chemical industries. Moreover, we have with us wide configurations of these machines for supply to customers at reasonable price tags
Contact Voltage AC Max: 250V
External Length / Height: 103mm
External Width: 81mm
PRODUCT RANGE : 2, 3, 5, 10 MTR CABLE
Foot switches are ideal for operating machines in applications such as spinning, wrapping, riveting and more. Single- or double-pedal foot switches with guards offer a selection of operating configurations including momentary or maintained free movement, or safety anti-trip style.
PRODUCT RANGE :
Mini Metal
Foot Switch With Cover
Foot Switch Without Cove
Double Pedal Switch With Cover
MAKE : Kosmos, Sibass, BCH, Any Other Make
This range of 22.5 pushbutton, selectors switches, illuminated switches, illuminated selector switches, and pilot lights have been designed to provide the following salient features:
1.Economy of space
2.Aesthetically elegant
3.Self Wiping Contacts
4.Simple to fix – screw driver is all that is required
5.Safe in operation
Size : All Type Fo Push Button Available
Make : Teknic, Sibass, kosmos, Any Make
We bring forth a comprehensive range of LED Indicator to our prestigious clients. Our offered LED indicator is professionally designed to meet the requirements of various household and industrial sectors. Further, the mentioned product is manufactured using quality tested components and employing contemporary technology under the supervision of skilled professionals at vendors' end. We offer this range to our precious clients at reasonable prices
Size : All Type Fo Push Button Available
Colour : Red, Yellow, Blue, Green, White
Volt : 12/24 VDC, 110/230 VAC
Make : Teknic, Sibass, kosmos, Any Make
We offer our client an excellent quality range of MCB Channels, which are manufactured from high grade quality raw materials. These MCB Mounting Channels can be customized as per our precious customers specifications. These MCB Mounting Channels are widely known for its durability and quality. Our MCB Mounting Channels can be availed at industrial leading price.
Proximity Switches detects the presence of nearby objects without any physical contact. Different proximity sensor targets demand different sensors. For example, a capacitive or photoelectric sensor might be suitable for a plastic target; an inductive proximity sensor requires a metal target. They are highly reliable and have a long functional life because of the absence of mechanical parts and lack of physical contact between sensor and the sensed object.
Proximity sensors are also used in machine vibration monitoring to measure the variation in distance between a shaft and its support bearing. This is common in large steam turbines, compressors, and motors that use sleeve-type bearings. Other applications include Car bumpers that sense distance to nearby cars for parking, ground proximity warning system for aviation safety, vibration / position measurements of rotating shafts in machinery and sheets break sensing in paper machine, anti-aircraft artillery, mobile phones and roller coaste
Range: 4,5,6,8,12,18,30 MM, PNP/NPN NO,AC NO/NC, DCNO/NC
Make : Omron, Teknic, Sibass, kosmos, Any Make
Solid State Relay is used in bottling, building, automation, car washes, commercial office buildings, conveyance lines, manufacturing, material handling, packaging and pharmaceutical industries.
| Name | Available Amps in Single phase | Available Amps in three phase |
|---|---|---|
| Model No | 10A, 16A, 25A, 40A, 50A, 60A, 75A, 90A | 10A, 16A, 25A, 40A, 50A, 60A, 75A, 90A |
| Input Voltage | 3~32VDC/AC | 3.5~32VDC |
| Output Voltage | 480VAC | 480VAC |
Switched Mode Power Supply(switching-mode power supply, SMPS, or simply switcher) is an electronic power supply that incorporates a switching regulator in order to be highly efficient. Like other types of power supplies, an SMPS transfer's power from a source like the electrical power grid to a load (e.g., a personal computer) while converting voltage and current characteristics. An SMPS is usually employed to efficiently provide a regulated output voltage, typically at a level different from the input voltage.With these aspects, our offered products are used in Assembly Lines Automotive Complex and Special Machines Control and Monitoring Industrial markets Manufacturing Material Handling Packaging
| Name | Available Amps in Single phase | Available Amps in three phase |
|---|---|---|
| Model No | 1.1A, 2.1A, 4.2A, 6.5A, 10A, 14.5A, 20A, | 2.1A, 5A, 10A, 15A, 20A, |
| Input Voltage | 110/230 VAC | 110/230 VAC |
| Output Voltage | 12/24 V DC | 12/24 V DC |
We are one of the leading electrical panel locks suppliers in India. These control panel locks comprises Cabinet Locks, Flush Locks, Compression Locks, Slam Locks, Pad Locks etc. We offer Electrical Panel Locks and Hinges suitable to be used in Rittal Panels, Siemens Panel & ABB Panel Boards. Different types of Door Locks / Electrical Panel Locks
We are notable entity instrumental in manufacturing and supplying wide gamut of Heat Shrink Sleeve.Our offered products are well known among our clients for their high-temperature resistant and excellent durability. Manufactured and fabricated in accordance with latest quality norms, these are optimally flexible and easy to use. Available with us in wide specifications, these sleeves are supplied to customers at nominal price tags
Size : 1 mm to 180 mm
Thickness : 0.02 mm
Max Withstanding Temperature : 125 Degree C
Make : Woer, Nico Power
We offer complete range of insulators, moulded out of high grade polyster reinforced resins (DMC and SMC). The Standoff insulators are made from DMC material, and are offered in different variants :
1.Conical Type,
2.Octagonal Type,
3.Full Cylindrical Type,
4.Cylindrical Type,
5.Round-Hex Type.
6.Drum Type (Taiwan model)
PVC Wiring Channels ( Cable Ducts) for Electrical Control Panels
Properties:
-> Ensure complete protection to wires & cables.
-> Facilitates Systematic wiring.
-> Avoid bunching & tapping of wires.
-> Easy & faster traching & rectification of faults in wiring systems.
-> Standard color: Light Grey.
-> Standard length: 1 meter (lengths other than one meter can also provided on requestv
Product Range:
PVC Wiring chaneels are available in the range : 15 x 15mm to 150 x150mm.
Standard Color : Gray, Black and White
Innovation is our forte and we strive to design and develop a precision engineered range of Control Relay With Base. These products are designed and developed to meet the requirements of our customers as these are manufactured by our hardworking labors keeping in mind the prevailing market trends of the industry. Furthermore, we make use of quality-assured raw material, procured from the credible vendors in the production process to ensure their longer service life and reliable performance Make : Omron, Sibass, kosmos, Nico Power, Any Make
Our Mentor Mr P M Mehta being the founder members of PLA TEC INDUSTRIES has excellent experience and knowledge of the product. Our product i.e. PVC Heat Shrinkable Lay Flat Tubing provides the perfect electrical insulation for Bus bars of low tension systems in control panels & switchgear systems. Bus bar sleeves are an excellent latest modern technology for insulation compared to age old conventional method of taping and painting etc. Our Product is available from 17 mm width to 300 mm width and in thickness ranging from 80 microns to 400 microns for the complete range of Bus Bar and which covers the variations as required by local/export units. Apart from the regular colours of Red, Yellow, Blue, Black & Green, our innovative in-house team has also developed new colour like BROWN, GREY & WHITE and hence adding a new dimension of colour to theBusbarrange
Working Temperature : 90℃
Shrinking Temperature : 150℃- 170℃ for 4-5 mins
Insulation Resistance : 20 x 10 Ω at 500 VDC
We are the proud leader in manufacturing and exporting LED machine lamps. The LED machine lamp is used to cast light on the space surrounding the machines. The LED or the light emitting diodes have a greater lifespan and efficiency than regular incandescent and CFL lamps. The low power consumption adds to advantage of choosing a LED machine lamp over CFL or an incandescent machine lamp. The manufacturing of these Machine Lamps are always done under close surveillance of our team of professionals. The lamp installed within the machines is Coolant, Water & Dust Proof hence suitable for wet and dry applications. Our CNC LED Machines Lamps are durable and gives optimum performance
Watt : 3, 8, 12, 18, 24, 36 Watt
Volt : 12/24 VDC, 110/220 VAC
We have designed and manufactured our Industrial Desk Lamp to meet the international industry standards, these lamps find wide applications in Textile Manufacturing, Automobile, Engineering Process – EDM Wire Cut Machines, Jewelry Manufacturing, Electrical and various other Industries.
Available Models:
* 2 Arm Industrial Machine Lamp – ML 2 Arms Horizontal Extension up to 23″
* Arm Industrial Machine Lamp – Ml. 3 Arms Horizontal Extension up to 33″
* Arm Industrial Machine Lamp – ML 4 Ar-ms Horizontal Extension up to 43
We are engaged in offering a variety of Hand Lamps which are manufactured as per the international quality standard. The Hand lamps are used for inspection of work space. We provide energy saving LED lighting solutions with IP 54 Grade protection. The lamps are resistant to temperature fluctuation and are shock proof. The hand lamps are apt for industrial usage and are cost efficient. We provide these lamps with plug in models with 5 metre cable, rechargeable with on/off switch, with magnets and charger for easy application of the device.
Cable Size : 5, 10, 20 MTR Cable
We are a prestigious company engaged in offering a superior quality Knobs Potentiometer. The provided product is provided in different specifications as per the variegated needs of customers. This product is stringently checked by quality controllers against several parameters of quality in order to supply a defect free range to customers. Offered product is acknowledged in market for its long lasting quality.
Types of potentiometers:-
1. Single turn- Carbon /wire wound
2. Multi-turn/ helipot - 3 turns/ 5turns/ 10turns
3. Servo potentiometer/ Continous rotation
An aesthetically appealing design features single back-of-panel lock-nut fixing and screw clamp terminals for easy mounting and connection. Brighter than a standard incandescent bulb and with very low power consumption. Provides bright even illumination across the pilot light surface. Easily visible even in brightly lit areas. Long life compare as bulbs indicators.
Fitting : Panel mounting.
Colour : Red, Green, Yellow, Blue, White
Operating voltage : 230V AC.
Frequency : 50~60 Hz.
Insulated Resistance > = 2M Ohms.
Brightness : 60 Luminous.
Continual Working Life : 30000 hours.
We are intensively engaged in the Manufacturing and Wholesaling of Toggle Switch, Door Switch, Rocker Switch, Indicator Switch and many more. We ensure to timely deliver these products to our clients.
Colour : Red, Green, Yellow, Blue
Make : Sibass, Kosmos
22.5mm Dia Led Indicating Voltmeter&ammeter For Panel Boards,
Voltage Specification : 0-500vac
Current Specification : 0-100a
Available In Red / Yellow/ Green/ Blue(round & Square)
colour : Red, Green, Yellow, Blue
Make : Sibass, Kosmos
